AgGrid table

The AgGrid table component allows you to display an Ag Grid table.

Guide

If you are new to Ag Grid, check out our Introduction guide.

The following section details AgGrid table component's specific settings. For more details on the App editor, check the dedicated documentation or the App editor Quickstart:

App editor Documentation

The app editor is a low-code builder to create custom User Interfaces with a mix of drag-and-drop and code.

Apps quickstart

Learn how to build your first app in a matter of minutes.

AgGird Table input

Type	Connectable	Templatable	Default	Description
Array<Object>	true	false		The table data.

The array can be static (hardcoded) or dynamic through an eval function or a compute (inline script).

Example of static input:

[
	{
		"id": 1,
		"name": "John Doe",
		"age": 25
	},
	{
		"id": 2,
		"name": "Jane Doe",
		"age": 30
	}
]

Example of compute input:

export async function main() {
	const res = await fetch('https://api.sampleapis.com/recipes/recipes', {
		headers: { 'Content-Type': 'application/json' }
	});
	return res.json();
}

Controls

This component can be controlled by frontend scripts using these functions:

• getAgGrid: Use the getAgGrid function to get the ag-grid instance of a table.
• setSelectedIndex: Use the setSelectedIndex function to select a row in a table or an AG Grid table.

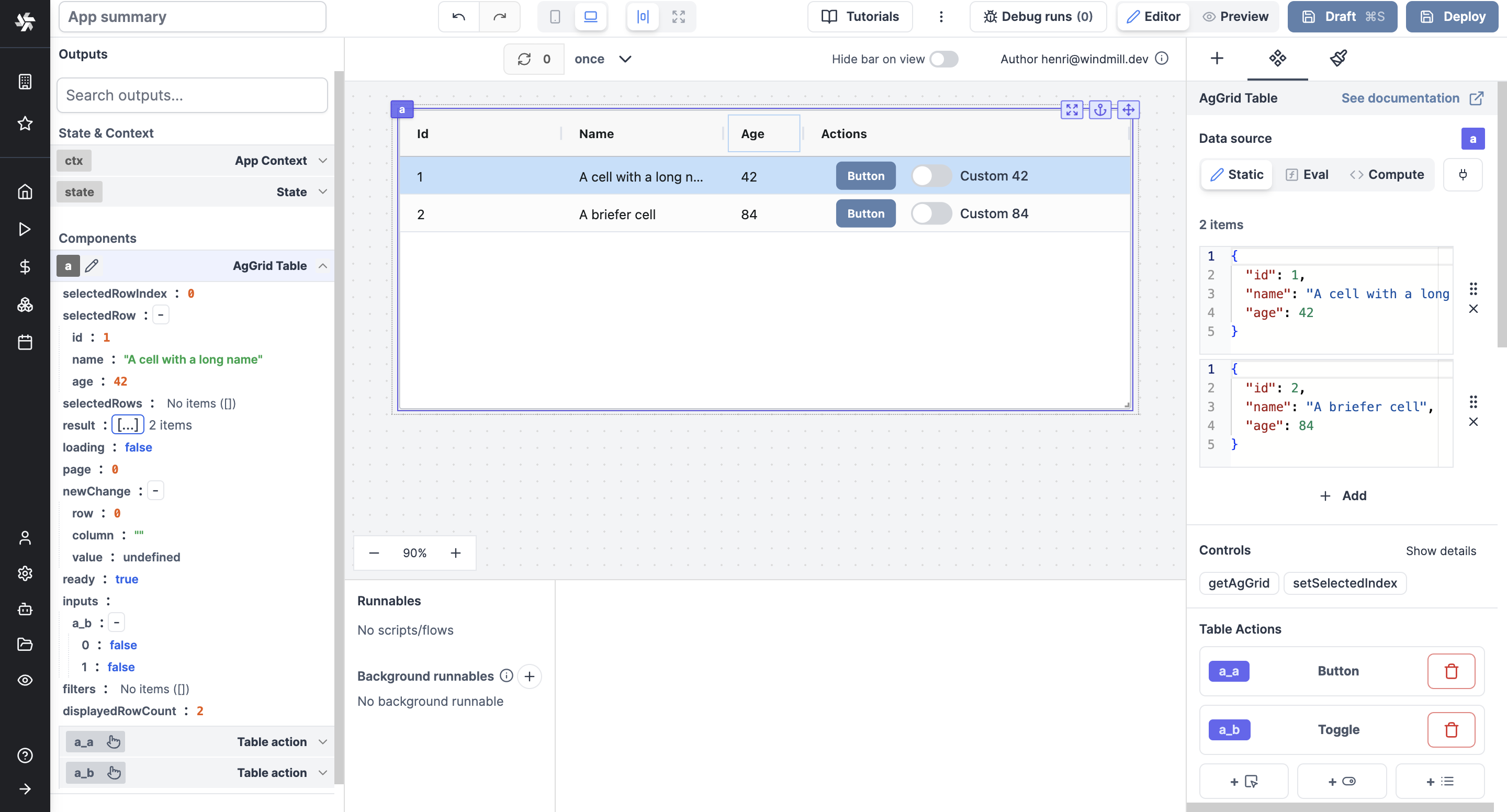

Table actions

AgGrid table can define actions that will be displayed in each row of the table. An action is a component that cannot be moved.

Available components are:

• Button
• Toggle
• Select

AgGrid table configuration

Name	Type	Connectable	Templatable	Default	Description
Column Defs	object	true	false	Id, Name, Age	The definition of the columns & their name.
Flex	boolean	false	false	true	Allows you to distribute available space among multiple elements to control their relative sizes and positions.
All Editable	boolean	false	false	false	Whether you want all columns to be editable.
Multiple Selectable	boolean	false	false	false	Make multiple rows selectable at once.
Row Multiselect With Click	boolean	false	false	true	If multiple selectable, allow multiselect with click.
Pagination	boolean	false	false	false	Whether you want pages on your table.
Select First Row By Default	boolean	false	false	false	Whether you want the first row to be selected by default.
Extra Config	object	true	false	{}	Extra configuration for the AgGrid table.
Compactness	select	true	false	normal	Change the row height (normal, compact, comfortable).
Wrap Actions	boolean	false	false	false	Wrap the actions in the table.
Footer	boolean	false	false	false	Show the footer of the table.
Custom Actions Header	string	true	false		Custom header for the actions.

Outputs

Name	Type	Description
result	object	The AgGrid table data.
loading	boolean	The loading state of the AgGrid table component
selectedRow	object	The selected row
selectedRowIndex	number	The selected row index
selectedRows	array	The selected rows
page	number	The current page
newChanges	object	The latest updated row
ready	boolean	The AgGrid table component is ready
inputs	object	The outputs of each action organised by action id and array of outputs
filters	object	The filters applied to the table
displayRowCount	number	The number of rows displayed on the table

Column Defs

The Column Defs input allows you to define the columns of the table. The columns are defined as an array of objects, where each object represents a column. The object has the following properties:

Name	Type	Description
field	string	The name of the field to display.
headerName	string	The name to display (if different from the name of field).
editable	boolean	Whether the column values can be edited by user.
minWidth	number	The minimum width of the column.
flex	number	Dynamically allocates remaining space of column based on its flex values.
hide	boolean	Whether the column is hidden.
valueFormatter	string	The function to format the value of the column (Currencies, Date, Percentage, Uppercase etc.)
sort	string	The order of the column (asc or desc).
filter	boolean	Whether the values of column can be filtered.
cellRendererType	string	The type of cell renderer to use (link, image, button etc.)

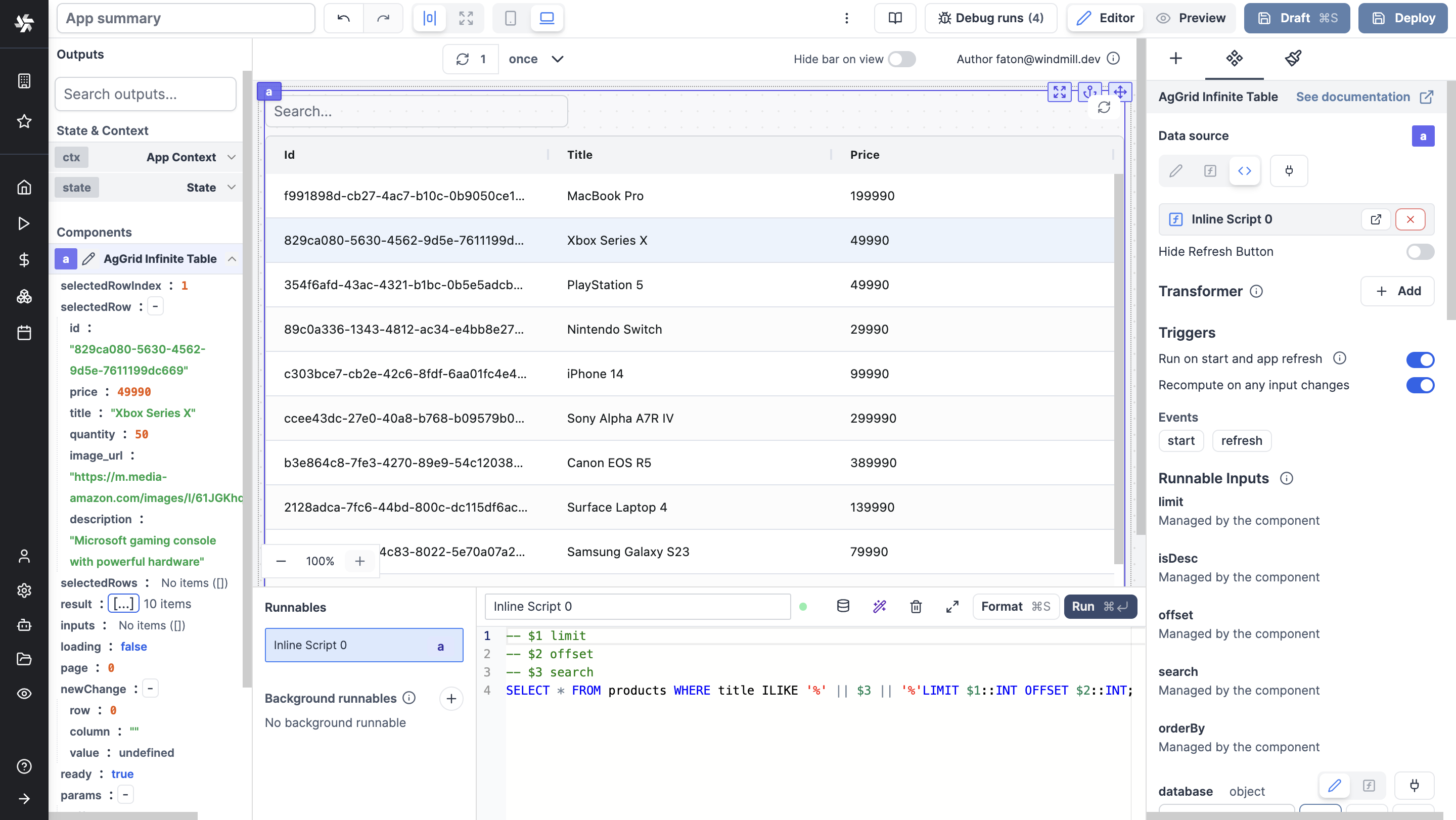

AgGrid infinite table

The AgGrid infinite table component allows you to display an Ag Grid table with infinite scrolling.

With this SQL syntax, you can create a query that fetches data from the database and lets the component manage:

• limit: Specifies the number of rows to display on a single page or to fetch from the server in one go (here, infinite).
• isDesc: Specifies the order of the rows (ascending or descending).
• offset: Specifies the number of rows to skip before starting to return rows.
• search: A search bar added to the component.
• orderBy: Specifies the column by which the data should be sorted.

-- $1 limit
-- $2 offset
-- $3 search
SELECT * FROM products WHERE title ILIKE '%' || $3 || '%'LIMIT $1::INT OFFSET $2::INT;

AgGrid table EE

The AgGrid table EE component allows you to display an Ag Grid table with the rest of AgGrid Enterprise features.

Its independent from Windmill's Enterprise Edition.

AgGrid Infinite EE

The AgGrid Infinite EE component allows you to display an Ag Grid table with infinite scrolling and the rest of AgGrid Enterprise features.
