WebSocket triggers

Windmill can connect to WebSocket servers and trigger runnables (scripts, flows) when a message is received. Listening is done from the servers, so it doesn't take up any workers. WebSocket triggers are not available on the Cloud Free and Team plans.

How to use

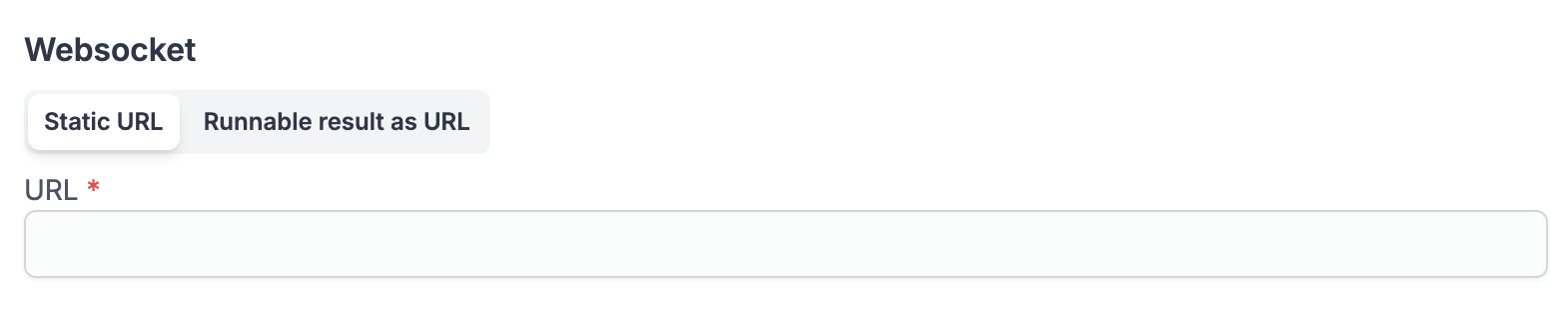

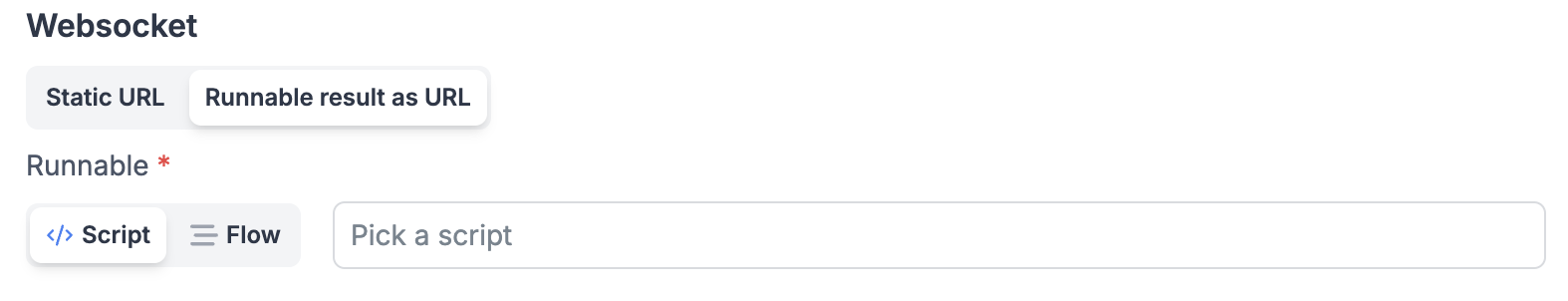

Create a new trigger on the WebSocket triggers page. Specify the URL of the WebSocket server. Instead of a static URL, you can also specify a script or flow to return the connect URL. This is useful when you need to pass an authentication query parameter to the connect URL. The runnable must return a string.

Once the URL set, select the runnable that should be triggered by this trigger. The received WebSocket message will be passed to the runnable as a string argument called msg.

Here's an example script:

export async function main(msg: string) {
  // do something with the message
}

And if you use a preprocessor, the script could look like this:

export async function preprocessor(
  event: {
    kind: "websocket",
    msg: string,
    url: string,
  }
) {
  if (event.kind !== "websocket") {
    throw new Error(`Expected a websocket event`);
  }

  // assuming the message is a JSON object
  const msg = JSON.parse(event.msg);

  // define args for the main function
  // let's assume we want to use the message content and the url
  return {
    message_content: msg.content,
    url: event.url
  };
}


export async function main(message_content: string, url: string) {
  // do something with the message content and url
}

The trigger also supports additional configuration options:

Send runnable result to WebSocket server

If you enable the "Send runnable result" toggle, the runnable result will be sent to the WebSocket server as a message, as long as the job is a success and the result is not null. Like for sync webhooks, if the flow has the early return setting set, the chosen node result will be sent and the rest of the flow will continue asynchronously.

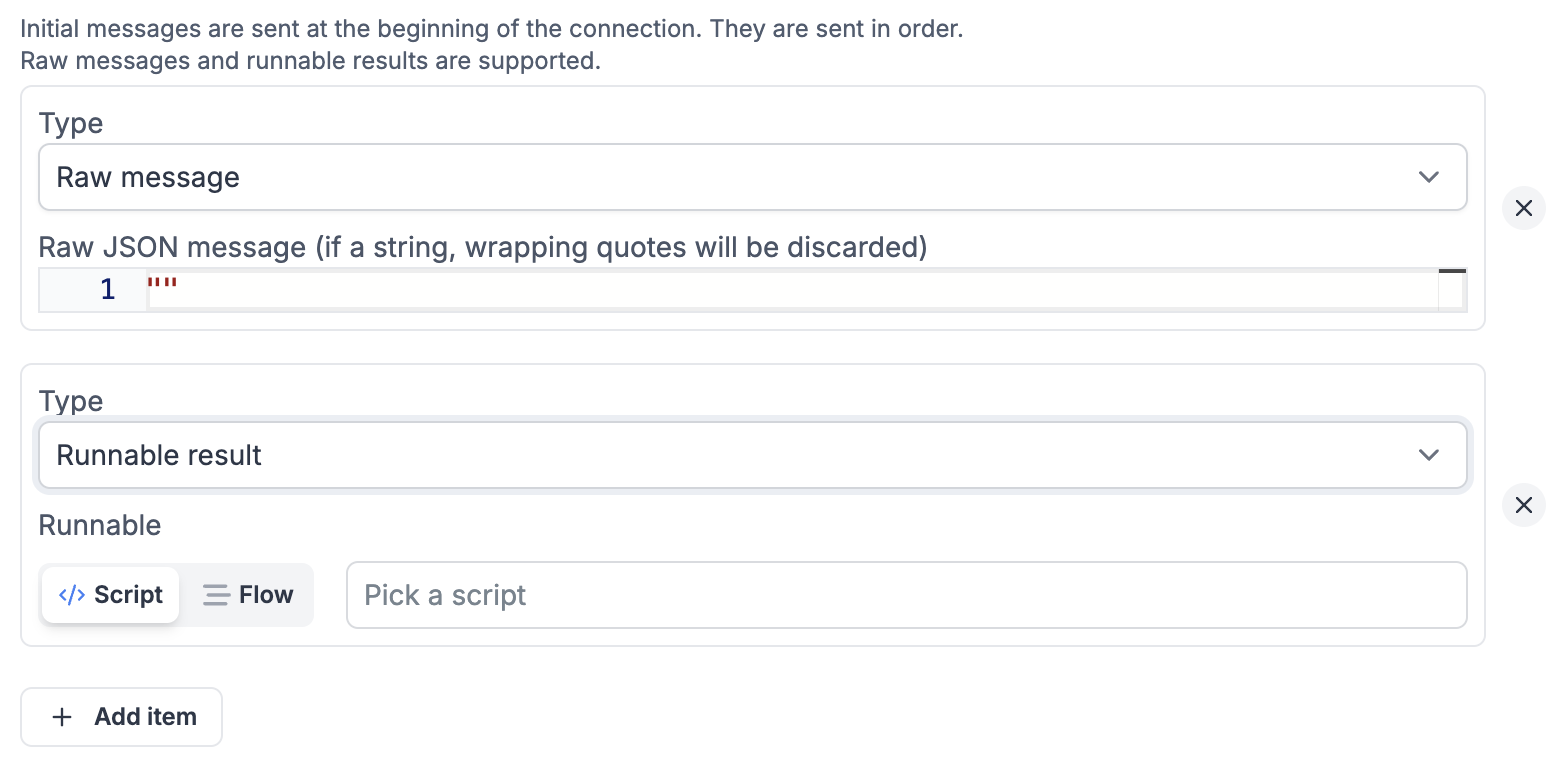

Initial messages

You can specify a list of initial messages to send to the WebSocket server when connection to the server is established. This is useful for authentication or subscription messages. They can be static strings or runnables that return the message. The static string field is in JSON format and will be stringified before sending. If the JSON value is a string, it will be sent without the wrapping quotes. The runnable can return a string or a JSON object, which will be stringified before sending. The messages are sent in the order they are specified.

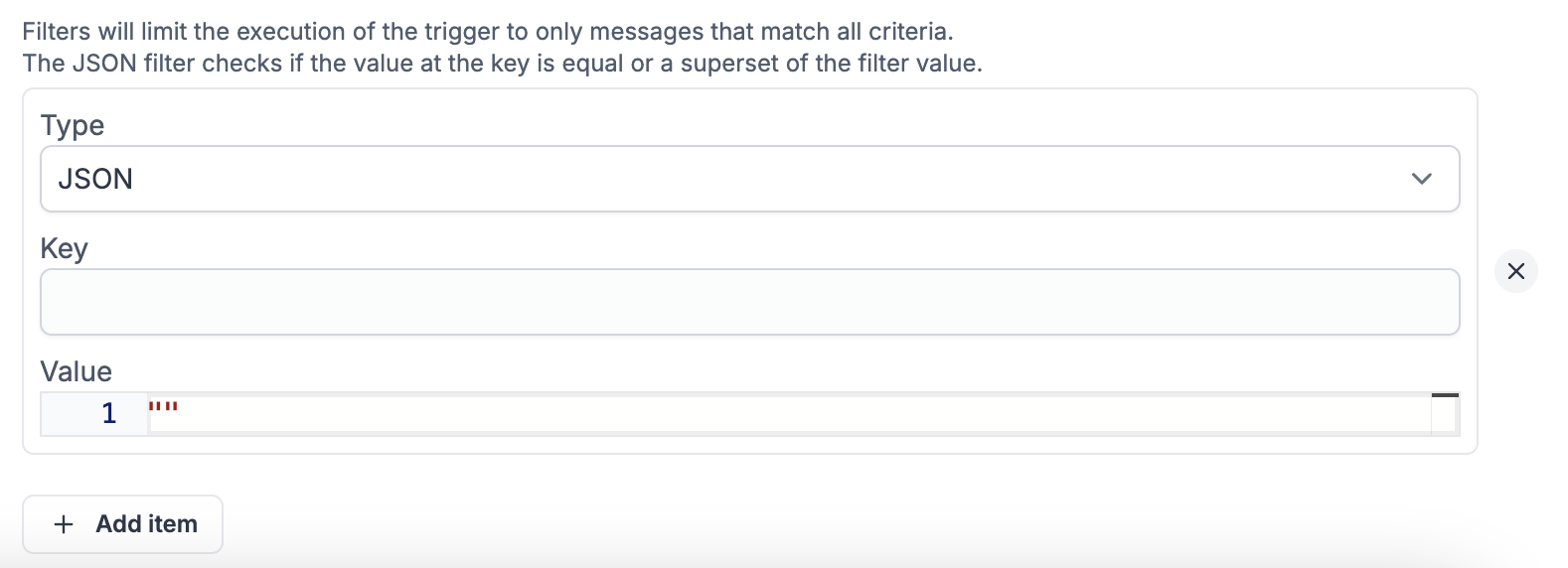

Filters

Instead of having all messages trigger the runnable, you can specify filters to only trigger the runnable when the message matches all filters. Windmill supports the following filter:

• JSON: The message is parsed as a JSON object and the filter checks that the filter key exists and the value at the key is equal or is a subset of the filter value.

Application-level heartbeat

Some WebSocket protocols (such as Discord Gateway, STOMP, or custom APIs) require the client to send periodic keep-alive messages at the application level to maintain the connection. Windmill supports this natively with the heartbeat configuration.

When enabled, Windmill sends a configurable message at a fixed interval through the WebSocket connection. This happens at the Rust level with zero job overhead — no scripts are executed for heartbeats.

Configuration

• Interval (seconds): How often to send the heartbeat message.
• Message: The message to send. You can use the {{state}} placeholder to include a value extracted from incoming messages.
• State field (optional): A top-level JSON field to extract from every incoming message. The extracted value replaces {{state}} in the heartbeat message.

Examples

Static heartbeat (STOMP, MQTT, simple APIs):

Field	Value
Interval	10
Message	{"type": "ping"}
State field	(empty)

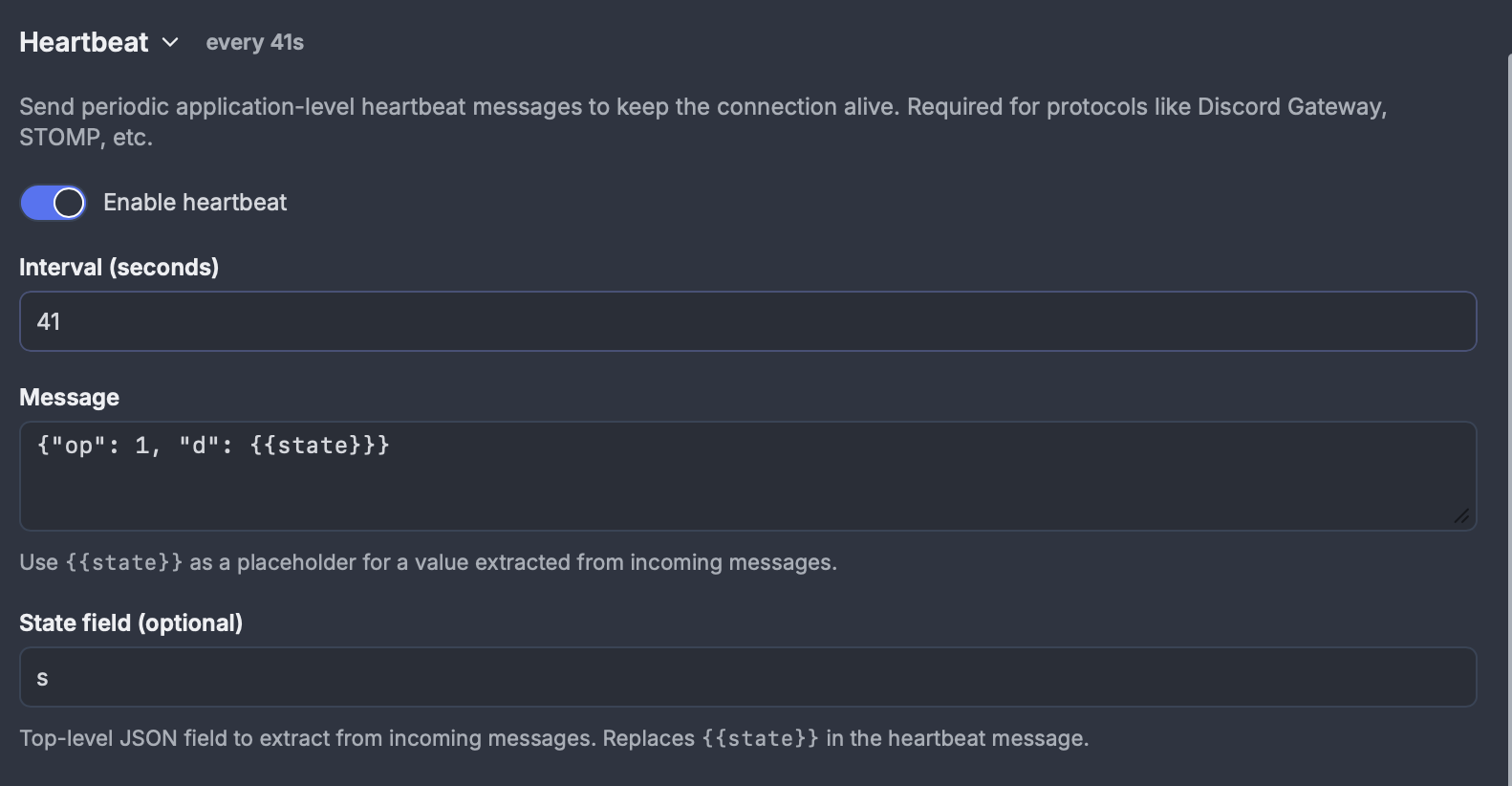

Stateful heartbeat (Discord Gateway):

Discord requires a heartbeat message that includes the last received sequence number (s field):

Field	Value
Interval	41
Message	{"op": 1, "d": {{state}}}
State field	s

Windmill extracts the s field from every incoming Discord event and substitutes it into the heartbeat message automatically. See the Discord bot guide for a complete walkthrough.

Error handling

WebSocket triggers support local error handlers that override workspace error handlers for specific triggers. See the error handling documentation for configuration details and examples.
