Email triggers

Scripts and flows can be triggered by email messages sent to a specific email address, leveraging SMTP.

Email triggers on Windmill Community Edition are limited to 100 emails per day.

Configuration

Email triggers is available on both cloud and self-hosted instances.

Cloud

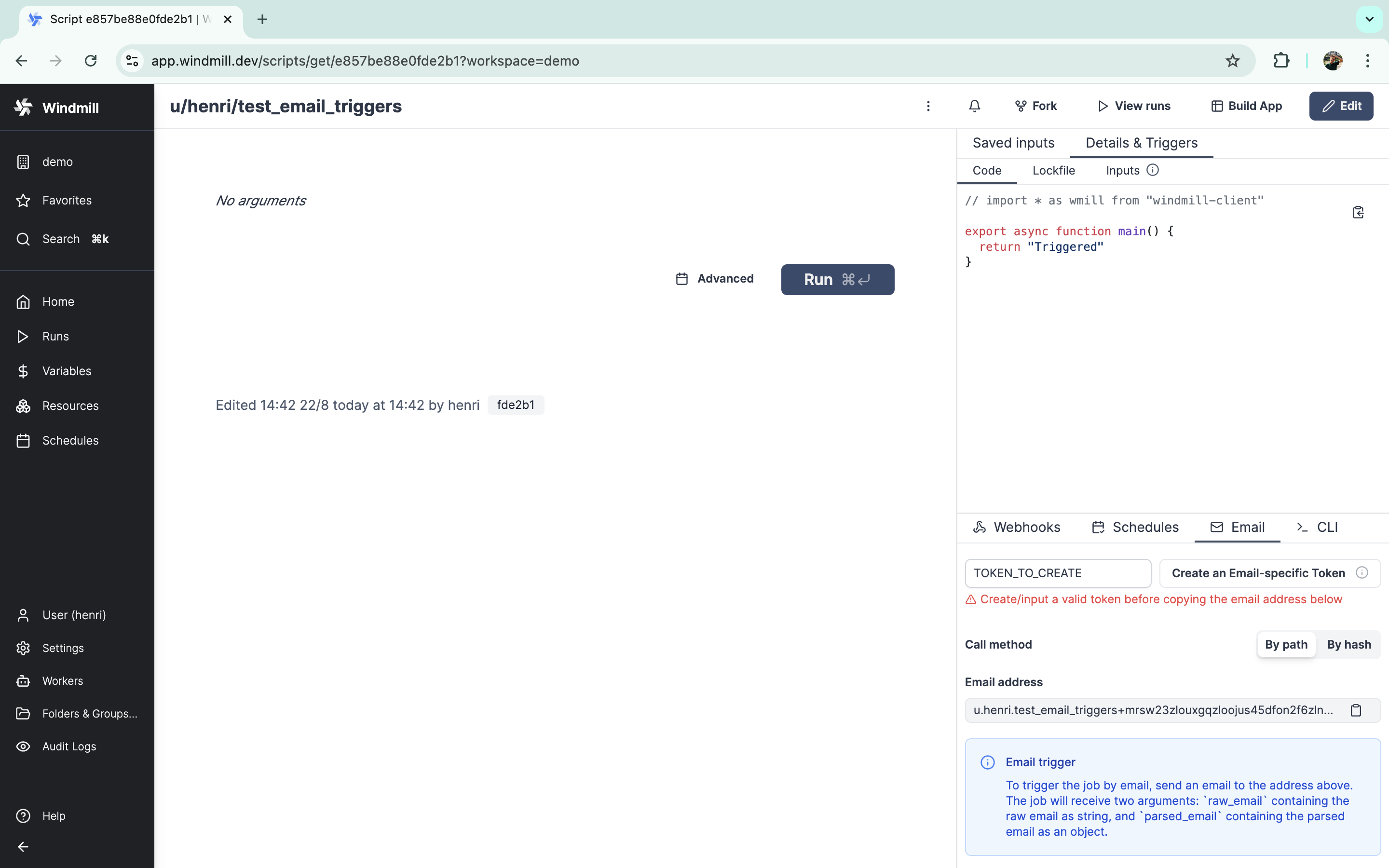

On cloud instances, Email triggers is already configured. You can try it from demo workspace.

Self-hosted

First, make sure that the port 25 is exposed either on your instance public IP or a separate IP and that it redirects to the Windmill app on port 2525. The Caddyfile already contains the necessary configuration for this. For Kubernetes, you will find example configurations for some providers on the Windmill helm charts repository.

In addition, you will need to create one or two records in your DNS provider depending on your setup.

If the port 25 is exposed on the same IP as the Windmill instance (e.g. docker-compose with Caddy):

• An MX record from mail.<instance domain> to <instance domain>.

If the port 25 is exposed through a different IP (e.g. Kubernetes):

• An A/CNAME record that points to the IP of the Windmill instance with port 25 exposed (for example mail_server.<instance domain>).
• An MX record from mail.<instance domain> to the record defined above (mail_server.<instance domain> if following the example).

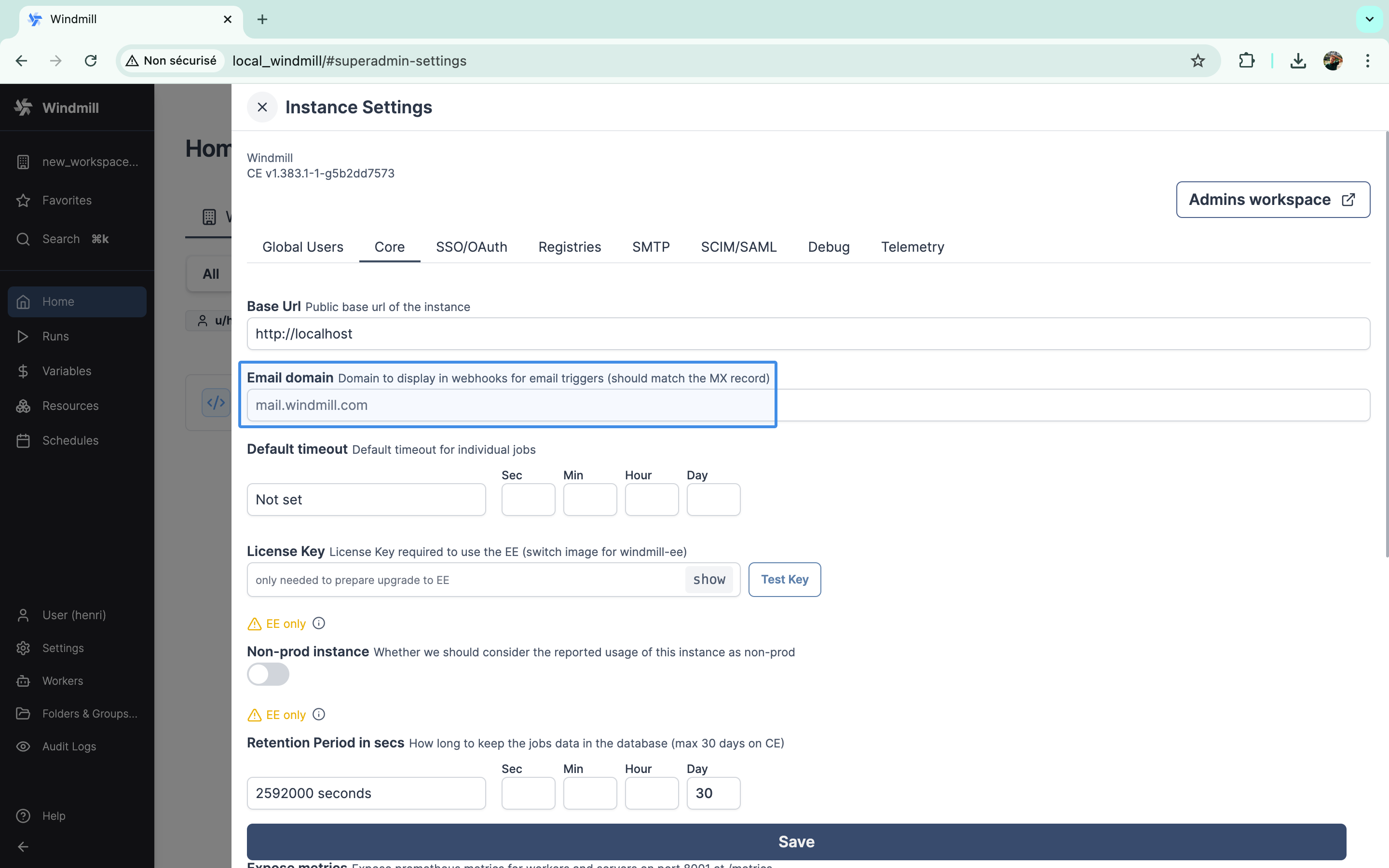

You can choose any email domain, we suggest using mail.<instance domain>. Once you have defined the DNS settings, set the email domain in the instance settings under the "Core" tab.

How to use

You will now find the specific email address to use in the webhooks panels for each script and flow. The email address takes the form <path/hash>+<workspace+path/hash+token base32 encoded>@<email domain>. Your script will receive two arguments:

• raw_email: the raw email as a string
• parsed_email the parsed email with the following attributes:
  • headers a dictionary with the email headers (e.g. From, To, Subject, Date)
  • text_body the text body of the email (or textified html body if none)
  • html_body the html body of the email (or htmlified text body if none)
  • attachments list of attachments with the following attributes:
    • headers a dictionary with the attachment headers
    • body the attachment data

Attchments are uploaded to the workspace object storage (s3) and are replaced in parsed_email by s3 objects ({ s3: "path/to/key" }). A workspace object storage is required for attachments to be handled.

Here's an example script:

export async function main(raw_email: string, parsed_email: any) {
  // do something with the email
}

And if you use a preprocessor, the script could look like this:

export async function preprocessor(
  raw_email: string,
  parsed_email: any,
  wm_trigger: {
    kind: "email",
  },
) {
  // return what you want to pass to the main function, for instance the sender email address and the email body
  return {
    sender_address: parsed_email.headers["From"][0].address,
    email_body: parsed_email.text_body
  }
}

export async function main(sender_address: string, email_body: string) {
  // do something with the sender email address and the email body
}

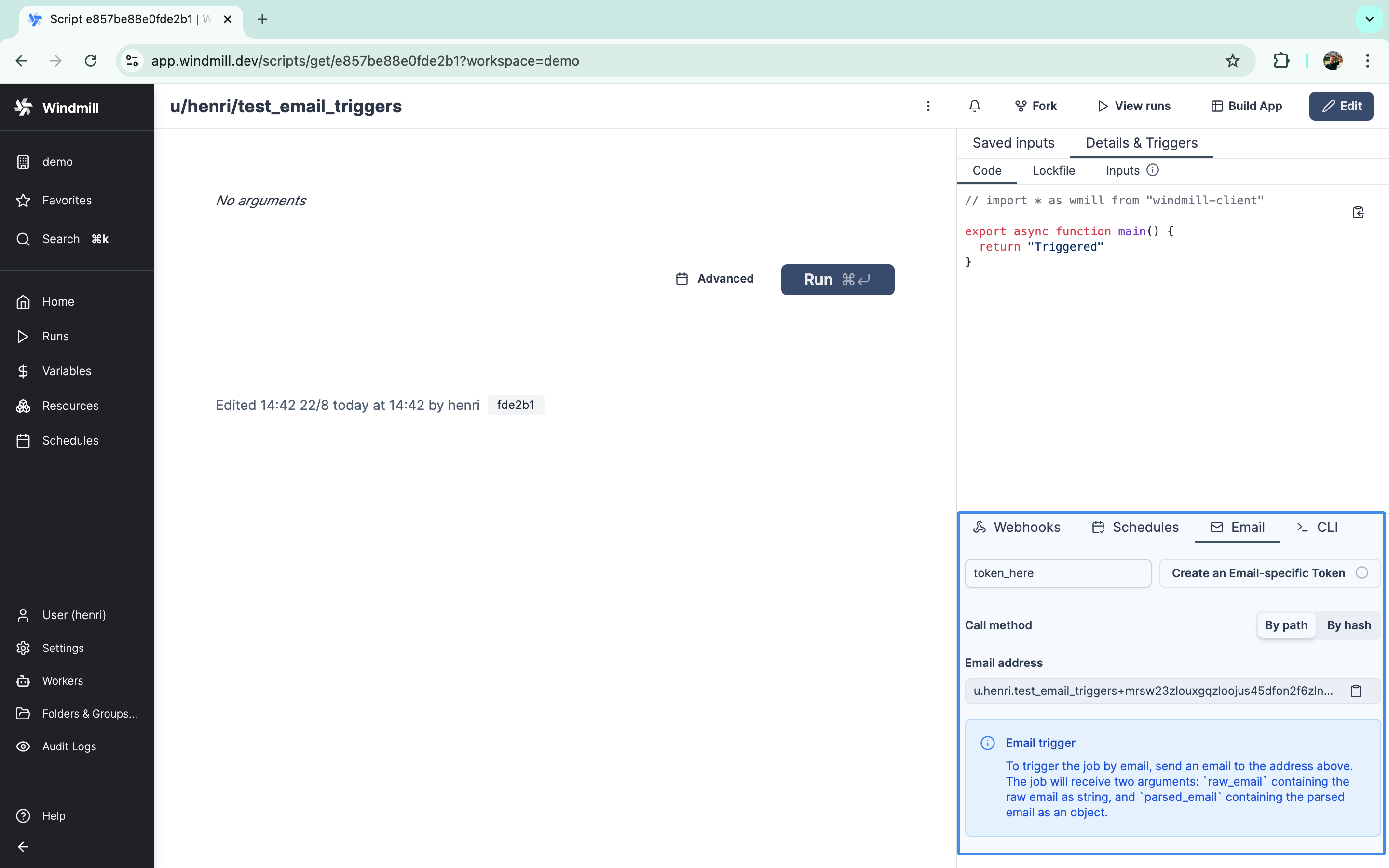

From a script or flow deployed page, you will find on the "Details & Triggers" - "Email" tab the email address to use.
