Preprocessors

Scripts and flows can include a preprocessor to transform incoming requests before they are passed to the runnable. The preprocessor is only called when the runnable is triggered via a webhook, an HTTP route, an email trigger, a WebSocket trigger, a Kafka trigger, a NATS trigger, a Postgres trigger, an SQS trigger or an MQTT trigger.

This approach is useful for preprocessing arguments differently depending on the trigger before the execution of the runnable. It also separates the handling of arguments according to whether they are called by a trigger or from the UI, which can help you keep a simple schema form in the UI for the runnable.

The preprocessor receives trigger metadata (wm_trigger) along with the main trigger arguments. The structure of wm_trigger and the main trigger arguments are specific to each trigger type:

• Webhook/HTTP: (wm_trigger: { kind: 'http' | 'webhook', http?: { ... } }, body_key_1: any, body_key_2: any, ...)
• Postgres: (wm_trigger: { kind: 'postgres' }, transaction_type: string, schema_name: string, table_name: string, row: any)
• WebSocket/Kafka/NATS/SQS/MQTT/GCP: (wm_trigger: { kind: 'websocket' | 'kafka' | 'nats' | 'sqs' | 'mqtt' | 'gcp', [kind]: { ... } }, msg: string)
• Email: (wm_trigger: { kind: 'email' }, raw_email: string, parsed_email: { ... })

You can find more details about the arguments format and the structure of wm_trigger for each trigger in their respective documentation pages.

Preprocessors can only be written in TypeScript (Bun/Deno) or Python.

Script preprocessor

In scripts, you need to export an additional preprocessor function.

The returned object defines the parameter values passed to main(). For instance, returning { b: 1, a: 2 } in the preprocessor will call main(2, 1), assuming main is defined as main(a: number, b: number). Ensure that the parameter names in main match the keys in the returned object.

Here are some templates for scripts with preprocessors in TypeScript and Python:

TypeScript

export async function preprocessor(
  /*
  * Replace this comment with the parameters received from the trigger.
  * Examples: `body_key_1`, `body_key_2` for Webhook/HTTP, `msg` for WebSocket, etc.
  */

  // The trigger metadata
  wm_trigger: {
    kind: 'http' | 'email' | 'webhook' | 'websocket' | 'kafka' | 'nats' | 'postgres' | 'sqs' | 'mqtt' | 'gcp',
    http?: {
      route: string // The route path, e.g. "/users/:id"
      path: string  // The actual path called, e.g. "/users/123"
      method: string
      params: Record<string, string> // path parameters
      query: Record<string, string>  // query parameters
      headers: Record<string, string>
    },
    websocket?: {
      url: string // The websocket url
    },
    kafka?: {
      brokers: string[]
      topic: string
      group_id: string
    },
    nats?: {
      servers: string[]
      subject: string
      headers?: Record<string, string[]>
      status?: number
      description?: string
      length: number
    },
    sqs?: {
      queue_url: string,
      message_id?: string,
      receipt_handle?: string,
      attributes: Record<string, string>,
      message_attributes?: Record<string, {
        string_value?: string,
        data_type: string
      }>
    },
    mqtt?: {
      topic: string,
      retain: boolean,
      pkid: number,
      qos: number,
      v5?: {
        payload_format_indicator?: number,
        topic_alias?: number,
        response_topic?: string,
        correlation_data?: Array<number>,
        user_properties?:  Array<[string, string]>,
        subscription_identifiers?: Array<number>,
        content_type?: string
      }
    },
    gcp?: {
      message_id: string,
      subscription: string,
      ordering_key?: string,
      attributes?: Record<string, string>,
      delivery_type: "push" | "pull",
      headers?: Record<string, string>,
      publish_time?: string,
    }
  }
) {
  return {
    // return the args to be passed to the runnable
  }
}

export async function main(/* main args */) {
  // your code here
}

Python

from typing import TypedDict, Literal
class Http(TypedDict):
    route: str # The route path, e.g. "/users/:id"
    path: str  # The actual path called, e.g. "/users/123"
    method: str
    params: dict[str, str]
    query: dict[str, str]
    headers: dict[str, str]

class Websocket(TypedDict):
    url: str # The websocket url

class Kafka(TypedDict):
    topic: str
    brokers: list[str]
    group_id: str

class Nats(TypedDict):
    servers: list[str]
    subject: str
    headers: dict[str, list[str]] | None
    status: int | None
    description: str | None
    length: int

class MessageAttribute(TypedDict):
    string_value: str | None
    data_type: str

class Sqs(TypedDict):
    queue_url: str
    message_id: str | None
    receipt_handle: str | None
    attributes: dict[str, str]
    message_attributes: dict[str, MessageAttribute] | None

class MqttV5Properties:
    payload_format_indicator: int | None
    topic_alias: int | None
    response_topic: str | None
    correlation_data: list[int] | None
    user_properties: list[tuple[str, str]] | None
    subscription_identifiers: list[int] | None
    content_type: str | None

class Mqtt(TypedDict):
    topic: str
    retain: bool
    pkid: int
    qos: int
    v5: MqttV5Properties | None

class Gcp(TypedDict):
    message_id: str
    subscription: str
    ordering_key: str | None
    attributes: dict[str, str] | None
    delivery_type: Literal["push", "pull"]
    headers: dict[str, str] | None
    publish_time: str | None

class WmTrigger(TypedDict):
    kind: Literal["http", "email", "webhook", "websocket", "kafka", "nats", "postgres", "sqs", "mqtt", "gcp"]
    http: Http | None
    websocket: Websocket | None
    kafka: Kafka | None
    nats: Nats | None
    sqs: Sqs | None
    mqtt: Mqtt | None
    gcp: Gcp | None

def preprocessor(
    # Replace this comment with the parameters received from the trigger.
    # Examples: `bodyKey1`, `bodyKey2` for Webhook/HTTP, `msg` for WebSocket, etc.

    # Trigger metadata
    wm_trigger: WmTrigger,
):
    return {
        # return the args to be passed to the runnable
    }

def main(): # add the parameters you expect from the preprocessor
    # your code here

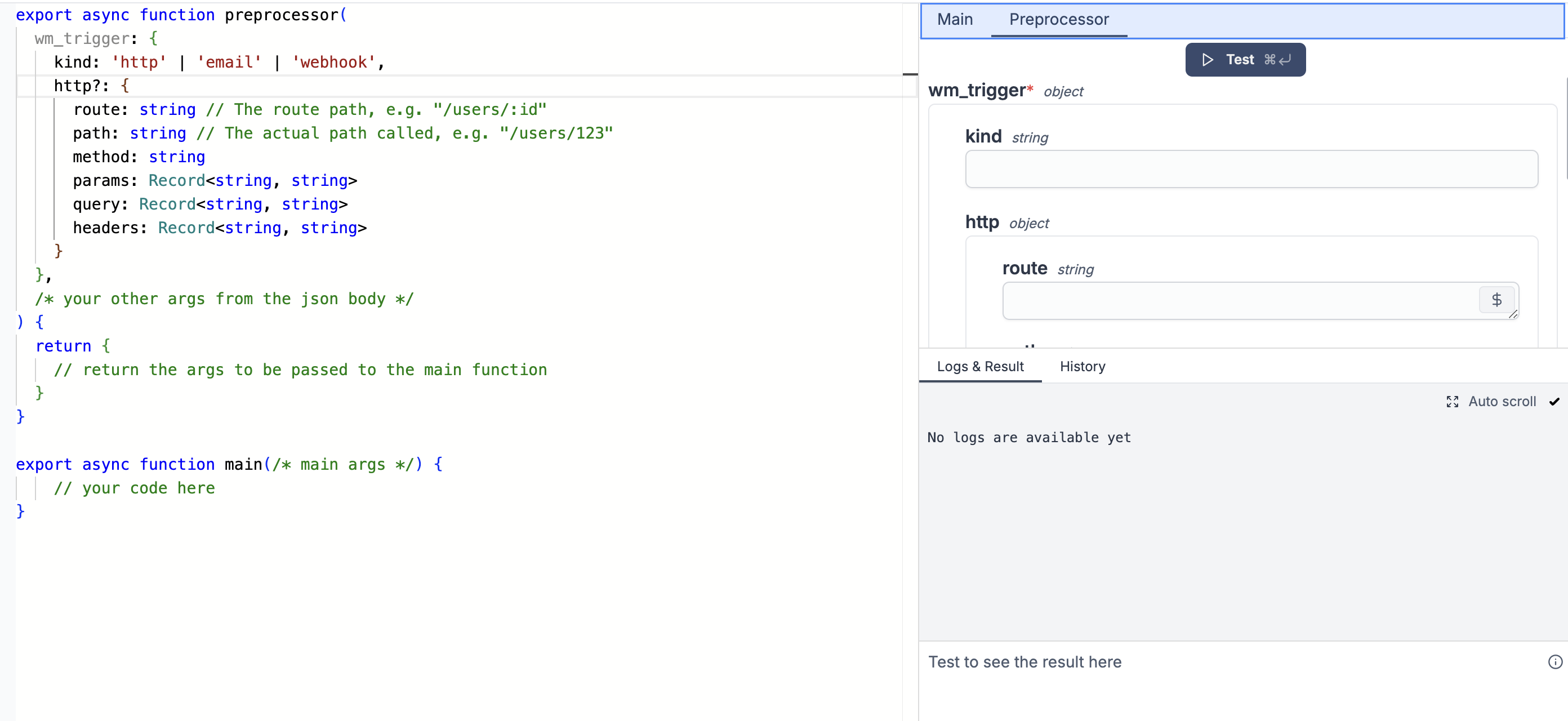

Once a preprocessor is created, you should see a new tab in the right panel of the editor that allows you to test the preprocessor with a sample request.

Flow preprocessor

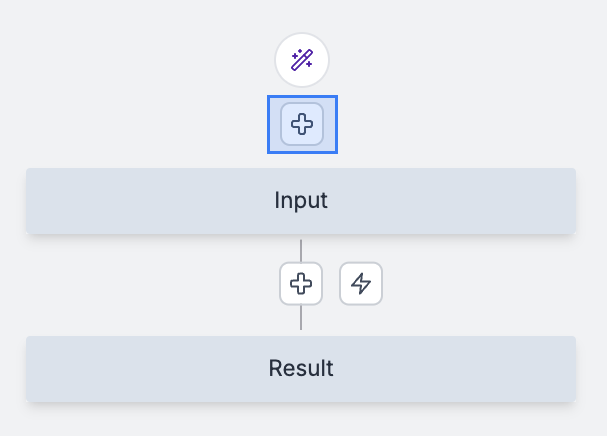

For flows, the idea is similar but the preprocessor is a standalone step that returns only a preprocessor function. To create a preprocessor for a flow, click on the plus button above the Input step:

The returned object determines the parameter values passed to the flow. For instance, returning { b: 1, a: 2 } in the preprocessor will call the flow with a = 2 and b = 1, assuming the flow has two inputs called a and b. Ensure that the input names of the flow match the keys in the returned object.

Below you'll find preprocessor step templates for flows in TypeScript and Python:

TypeScript

export async function preprocessor(
  /*
  * Replace this comment with the parameters received from the trigger.
  * Examples: `bodyKey1`, `bodyKey2` for Webhook/HTTP, `msg` for WebSocket, etc.
  */

  // The trigger metadata
  wm_trigger: {
    kind: 'http' | 'email' | 'webhook' | 'websocket' | 'kafka' | 'nats' | 'postgres' | 'sqs' | 'mqtt' | 'gcp',
    http?: {
      route: string // The route path, e.g. "/users/:id"
      path: string  // The actual path called, e.g. "/users/123"
      method: string
      params: Record<string, string> // path parameters
      query: Record<string, string>  // query parameters
      headers: Record<string, string>
    },
    websocket?: {
      url: string // The websocket url
    },
    kafka?: {
      brokers: string[]
      topic: string
      group_id: string
    },
    nats?: {
      servers: string[]
      subject: string
      headers?: Record<string, string[]>
      status?: number
      description?: string
      length: number
    },
    sqs?: {
      queue_url: string,
      message_id?: string,
      receipt_handle?: string,
      attributes: Record<string, string>,
      message_attributes?: Record<string, {
        string_value?: string,
        data_type: string
      }>
    },
    mqtt?: {
      topic: string,
      retain: boolean,
      pkid: number,
      qos: number,
      v5?: {
        payload_format_indicator?: number,
        topic_alias?: number,
        response_topic?: string,
        correlation_data?: Array<number>,
        user_properties?:  Array<[string, string]>,
        subscription_identifiers?: Array<number>,
        content_type?: string
      }
    },
    gcp?: {
      message_id: string,
      subscription: string,
      ordering_key?: string,
      attributes?: Record<string, string>,
      delivery_type: "push" | "pull",
      headers?: Record<string, string>,
      publish_time?: string,
    }
  }
) {
  return {
    // return the args to be passed to the runnable
  }
}

Python

from typing import TypedDict, Literal
class Http(TypedDict):
    route: str # The route path, e.g. "/users/:id"
    path: str  # The actual path called, e.g. "/users/123"
    method: str
    params: dict[str, str]
    query: dict[str, str]
    headers: dict[str, str]

class Websocket(TypedDict):
    url: str # The websocket url

class Kafka(TypedDict):
    topic: str
    brokers: list[str]
    group_id: str

class Nats(TypedDict):
    servers: list[str]
    subject: str
    headers: dict[str, list[str]] | None
    status: int | None
    description: str | None
    length: int

class MessageAttribute(TypedDict):
    string_value: str | None
    data_type: str

class Sqs(TypedDict):
    queue_url: str
    message_id: str | None
    receipt_handle: str | None
    attributes: dict[str, str]
    message_attributes: dict[str, MessageAttribute] | None

class MqttV5Properties:
    payload_format_indicator: int | None
    topic_alias: int | None
    response_topic: str | None
    correlation_data: list[int] | None
    user_properties: list[tuple[str, str]] | None
    subscription_identifiers: list[int] | None
    content_type: str | None

class Mqtt(TypedDict):
    topic: str
    retain: bool
    pkid: int
    qos: int
    v5: MqttV5Properties | None

class Gcp(TypedDict):
    message_id: str
    subscription: str
    ordering_key: str | None
    attributes: dict[str, str] | None
    delivery_type: Literal["push", "pull"]
    headers: dict[str, str] | None
    publish_time: str | None

class WmTrigger(TypedDict):
    kind: Literal["http", "email", "webhook", "websocket", "kafka", "nats", "postgres", "sqs", "mqtt", "gcp"]
    http: Http | None
    websocket: Websocket | None
    kafka: Kafka | None
    nats: Nats | None
    sqs: Sqs | None
    mqtt: Mqtt | None
    gcp: Gcp | None

def preprocessor(
    # Replace this comment with the parameters received from the trigger.
    # Examples: `bodyKey1`, `bodyKey2` for Webhook/HTTP, `msg` for WebSocket, etc.

    # Trigger metadata
    wm_trigger: WmTrigger,
):
    return {
        # return the args to be passed to the runnable
    }
