Search Bar

Every workspace has a Search Bar to navigate through it.

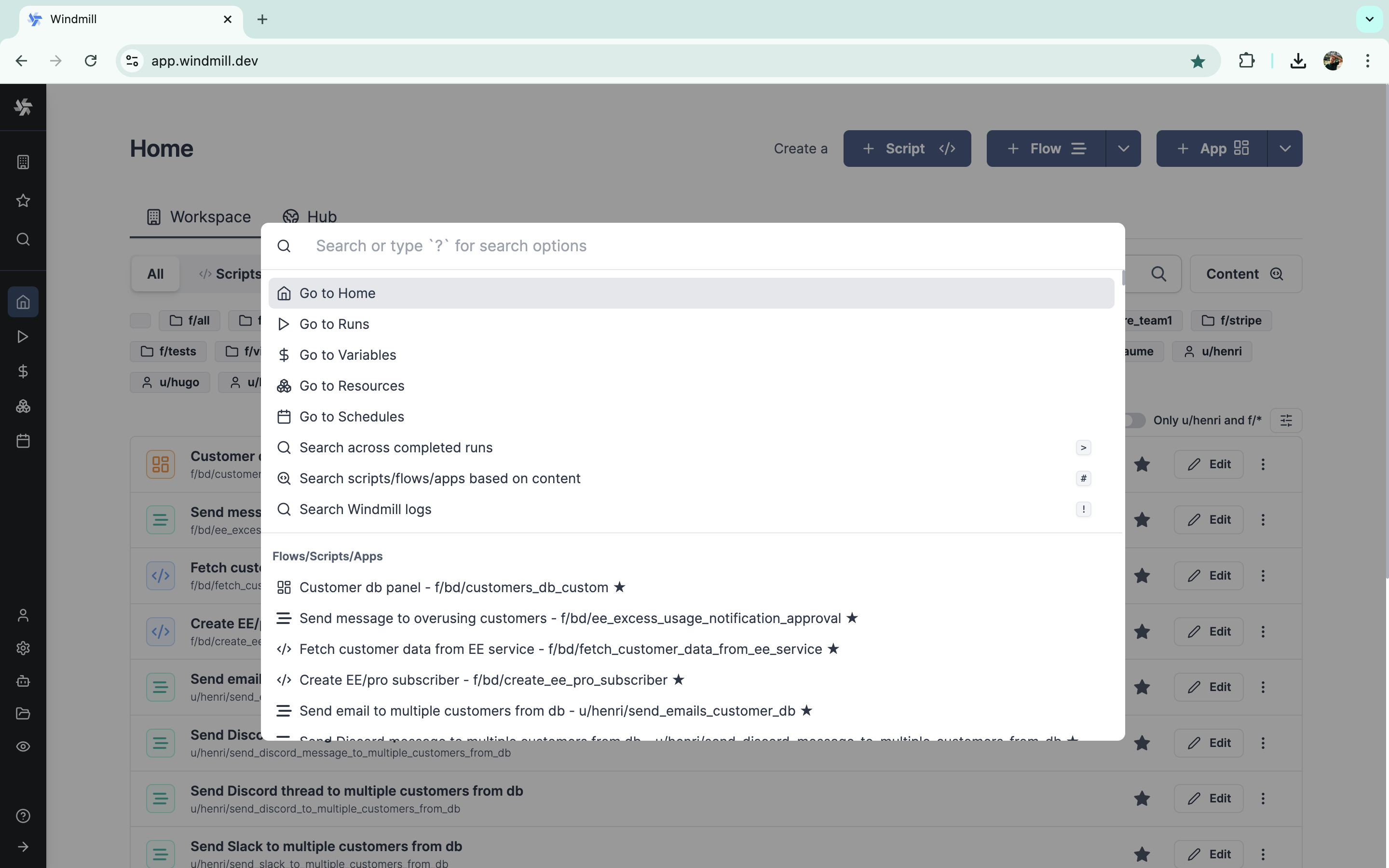

Search bar

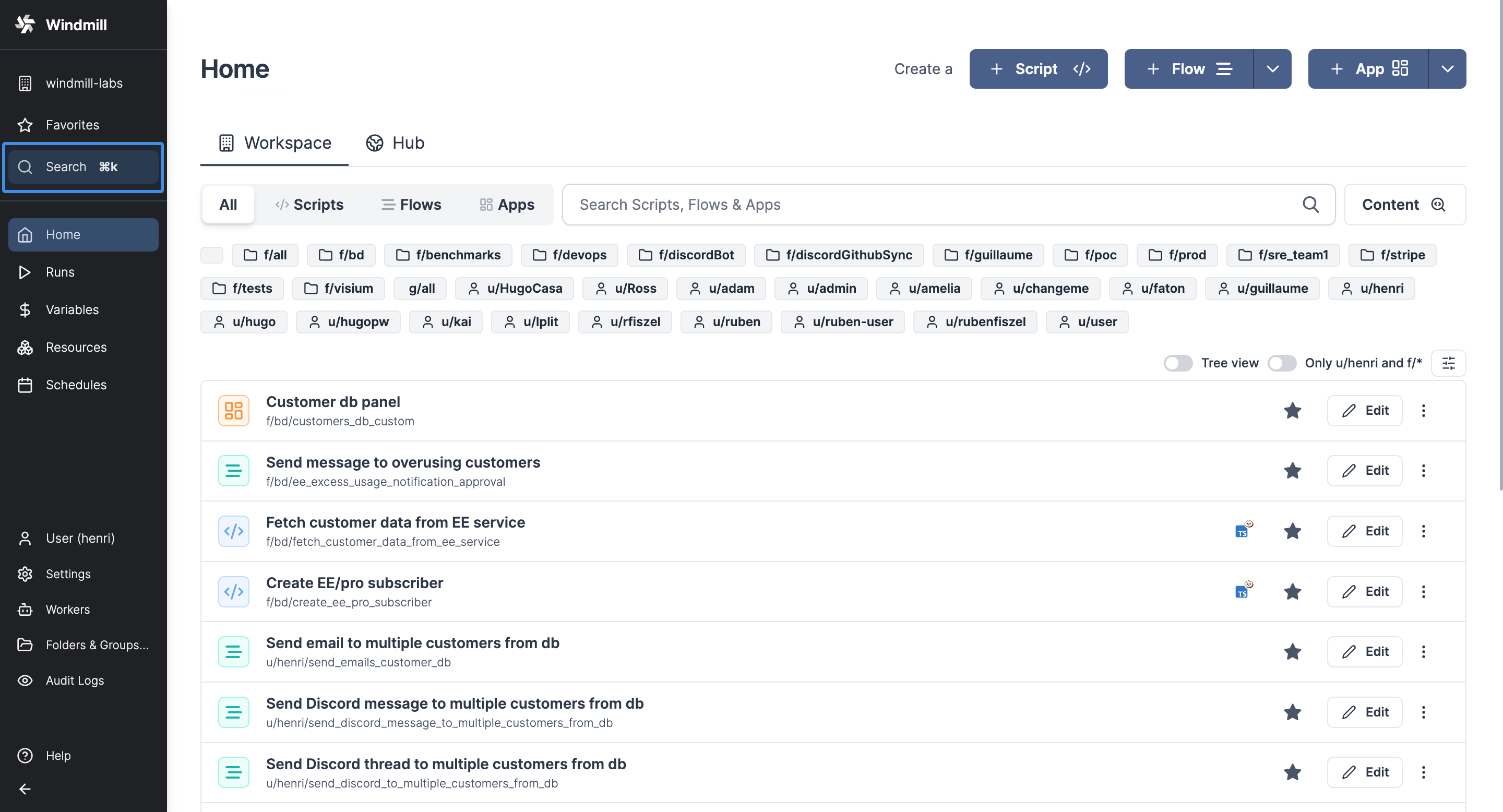

It can be triggered with shortcut Ctrl + K & ⌘k on Mac, or with Search button from sidebar. From here you can select from the options with the mouse or browse with the arrow keys.

Search button

Only Superadmins, Admins & Developers (not Operators) have access to this feature.

It can go to several pages:

Prefix keys

With a special prefix key, you can search accros:

Completed runs (arguments, results) with with key >.
Content of scripts, flows and apps with key # (without Enterprise Edition, content search will only search among 10 scripts, 3 flows, 3 apps and 3 resources).
Logs with key !.

Search accross runs

Search accross runs with key >.

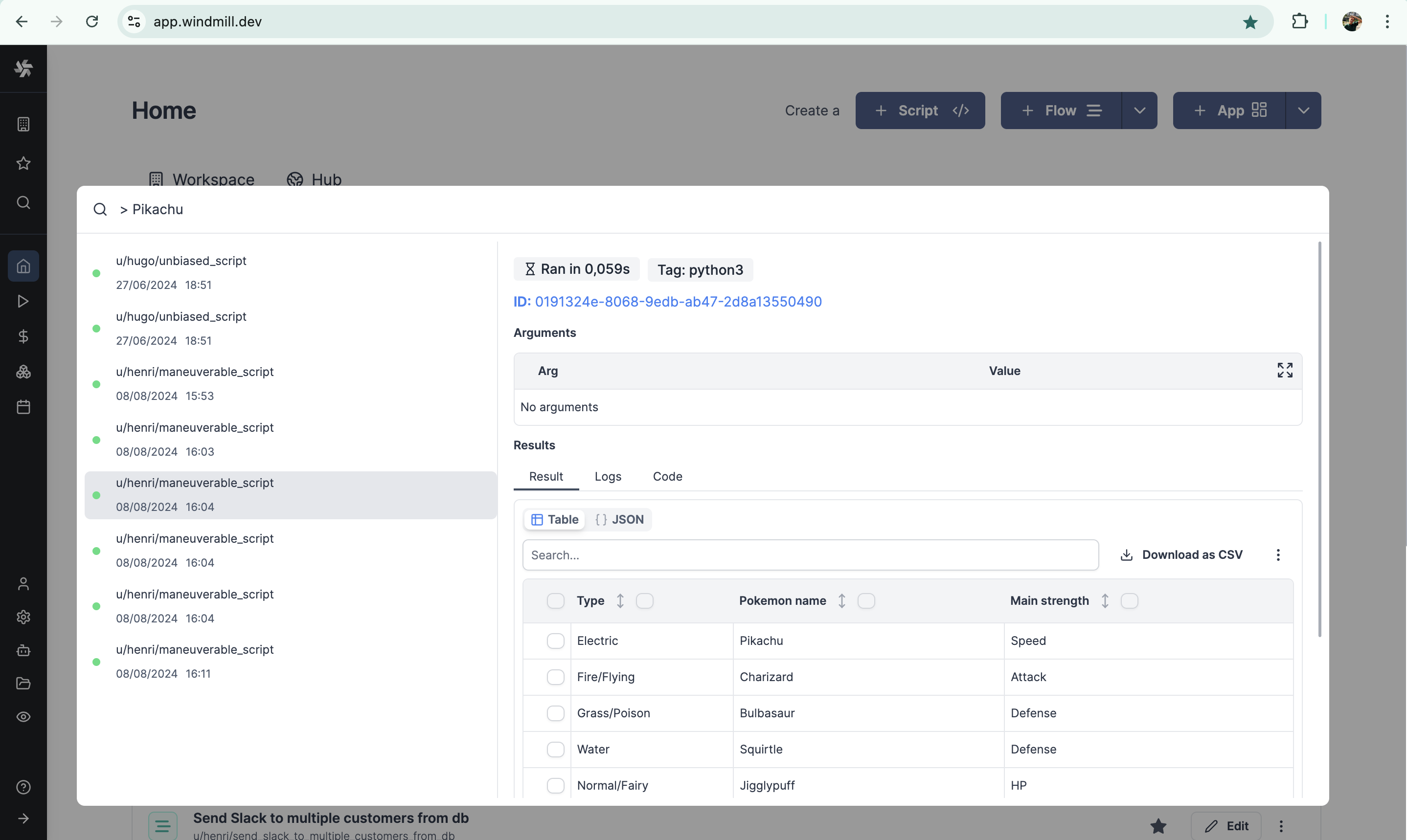

Searching runs

You can search through completed runs by selecting the option on the search menu, or by prefixing your search with >.

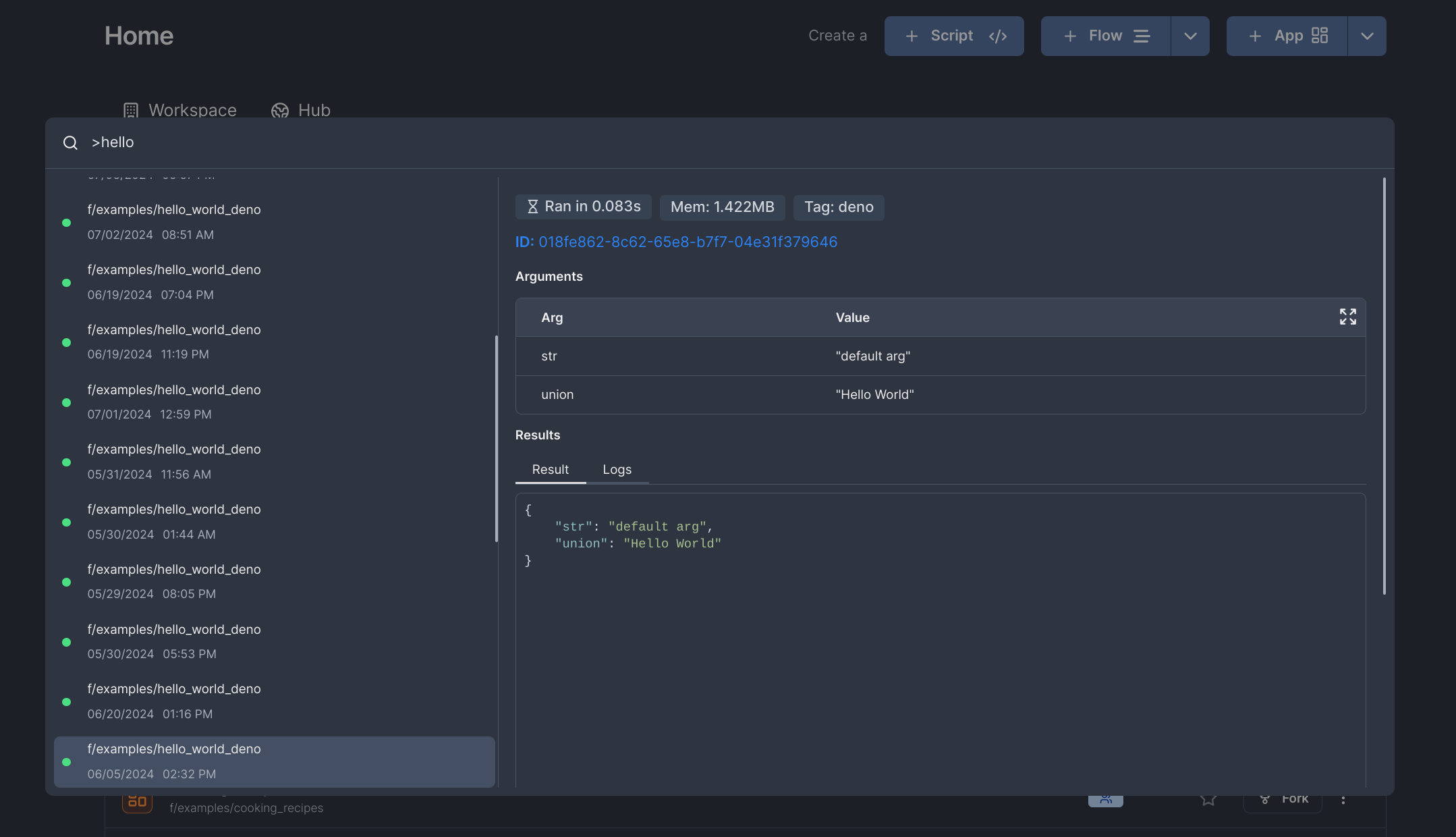

Full text job search

Queries are parsed by Tantivy's QueryParser, which lets you build relatively complex and useful queries. For example, you can try searching:

> script_path:u/user/searchable_flow AND success:false

to get the jobs corresponding to said path that also failed.

Learn more about the query syntax: Tantivy QueryParser docs

Searchable fields for jobs

The fields that are indexed and that you can use with the my_field:some_text syntax, :

Filed name	Type
id	TEXT
parent_job	TEXT
created_by	TEXT
duration_ms	INT
success	BOOL
script_hash	TEXT
script_path	TEXT
args	TEXT
result	TEXT
logs	TEXT
deleted	BOOL
canceled	BOOL
canceled_by	TEXT
canceled_reason	TEXT
job_kind	TEXT
schedule_path	TEXT
permissioned_as	TEXT
is_flow_step	BOOL
language	TEXT
is_skipped	BOOL
email	TEXT
visible_to_owner	BOOL
mem_peak	INT
tag	TEXT
created_at	DATE
started_at	DATE

Content search

By using the # prefix, you can use windmill's Content Search and search through scripts, flows, and apps.

Content Search

Search any scripts, flows, resources, apps for a specific string similar to GitHub search.

Searching logs

Searching through Windmill's service logs as well as audit logs is comming soon.

Setup

Setup using docker compose

On the Windmill's docker-compose.yml there is an example of how to setup the indexer container to enable full text search, just make sure to change replicas from 0 to 1.

  # The indexer powers full-text job and log search, an EE feature.
  windmill_indexer:
    image: ${WM_IMAGE}
    pull_policy: always
    deploy:
      replicas: 1 # set to 1 to enable full-text job and log search
    restart: unless-stopped
    expose:
      - 8001
    environment:
      - PORT=8001
      - DATABASE_URL=${DATABASE_URL}
      - MODE=indexer
      - TANTIVY_MAX_INDEXED_JOB_LOG_SIZE__MB=1 # job logs bigger than this will be truncated before indexing
      - TANTIVY_S3_BACKUP_PERIOD__S=3600 # how often to backup the index into object storage
      - TANTIVY_INDEX_WRITER_MEMORY_BUDGET__MB=100 # higher budget for higher indexing throughput
      - TANTIVY_REFRESH_INDEX_PERIOD__S=300 #how often to start indexing new jobs
      - TANTIVY_DOC_COMMIT_MAX_BATCH_SIZE=100000 #how many documents to batch in one commit
      - TANTIVY_SHOW_MEMORY_EVERY=10000 #log memory usage and progress every so many documents indexed
    depends_on:
      db:
        condition: service_healthy
    volumes:
      - windmill_index:/tmp/windmill/search

The indexer is in charge of both indexing new jobs and answering search queries. Because of this, we also need to redirect search requests to this container instead of the normal windmill server. This is what it looks like if you're using Caddy:

{$BASE_URL} {
        bind {$ADDRESS}
        reverse_proxy /ws/* http://lsp:3001
        # reverse_proxy /ws_mp/* http://multiplayer:3002
        reverse_proxy /api/srch/* http://windmill_indexer:8001
        reverse_proxy /* http://windmill_server:8000
        # tls /certs/cert.pem /certs/key.pem
}

Redirecting requests prefixed by /api/srch to port 8001 (same port as in the docker-compose.yml)

Setup using helm charts

Configuration

Environment variables

The index can be configured through a couple of environment variables.

env var	default	description
TANTIVY_MAX_INDEXED_JOB_LOG_SIZE__MB	1	Job logs bigger than this will be truncated before indexing, This is to reduce the index size and to improve indexing performance.
TANTIVY_S3_BACKUP_PERIOD__S	3600	How often to backup the index into object storage
TANTIVY_INDEX_WRITER_MEMORY_BUDGET__MB	100	How much memory the writer can use before writing to disk. Increasing it can improve indexing throughput.
TANTIVY_DOC_COMMIT_MAX_BATCH_SIZE	100000	Every `TANTIVY_REFRESH_INDEX_PERIOD__S`, the indexer will commit the jobs written, making them searchable. This variable sets an amount of jobs after which to early-commit, to make the jobs searchable. This is mainly relevant for the first run (when running the whole completed_job table). Lower values can hurt indexing throughput.
TANTIVY_REFRESH_INDEX_PERIOD__S	300	Adding new jobs to the index. Jobs are only available to be searched after they are indexed and commited
TANTIVY_SHOW_MEMORY_EVERY	10000	Log memory usage and indexing progress every this many jobs

Index persistence

There are two ways to make the index persistent (and avoid reindexing all jobs at every restart). The recommended way is to setup an object storage such as Amazon S3, and the index will automatically be backed up and pulled from there. This can be done by setting up S3/Azure for python cache and large logs.

It is also possible to store the index in a volume attached to the indexer container. The docker-compose.yml serves as an example of how to set it up (on /tmp/windmill/search).
