Cloudflare integration

Cloudflare R2 is a cloud object storage service for data-intensive applications.

Instance and workspace object storage are different from using S3 resources within scripts, flows, and apps, which is free and unlimited. This is what is described in this page.

At the workspace level, what is exclusive to the Enterprise version is using the integration of Windmill with S3 that is a major convenience layer to enable users to read and write from S3 without having to have access to the credentials.

Additionally, for instance integration, the Enterprise version offers advanced features such as large-scale log management and distributed dependency caching.

Cloudflare's API follows the same schema as any S3 compatible API.

Add an S3 Resource

To integrate Cloudflare to Windmill, you need to save the following elements as a resource.

Here is the information on where to find the required details:

Property	Type	Description	Default	Required	Where to Find	Additional Details
bucket	string	S3 bucket name		true	R2 Dashboard	Name of the S3 bucket to access
region	string	AWS region for the S3 bucket		true	R2 documentation	The region is specific to R2 and is set when creating the bucket
useSSL	boolean	Use SSL for connections	true	false	R2 documentation	SSL/TLS is required for Cloudflare R2
endPoint	string	S3 endpoint		true	R2 documentation	Endpoint URL will be in the format https://[bucket-id].r2.storage.cloud.cloudflare.com
accessKey	string	AWS access key		false	Not applicable for Cloudflare R2	Access key ID is not required for R2
pathStyle	boolean	Use path-style addressing	false	false	Not applicable for Cloudflare R2	Virtual-hosted-style URLs are always used in R2
secretKey	string	AWS secret key		false	Not applicable for Cloudflare R2	Secret access key is not required for R2

Your resource can be used passed as parameters or directly fetched within scripts, flows and apps.

Example of a Supabase resource being used in two different manners from a script in Windmill.

tip

Find some pre-set interactions with S3 on the Hub.

Feel free to create your own S3 scripts on Windmill.

Workspace object storage

Once you've created an S3 or Azure Blob resource in Windmill, you can use Windmill's native integration with S3 and Azure Blob, making it the recommended storage for large objects like files and binary data.

The workspace object storage is exclusive to the Enterprise edition. It is meant to be a major convenience layer to enable users to read and write from S3 without having to have access to the credentials.

Workspace object storage

Connect your Windmill workspace to your S3 bucket or your Azure Blob storage to enable users to read and write from S3 without having to have access to the credentials.

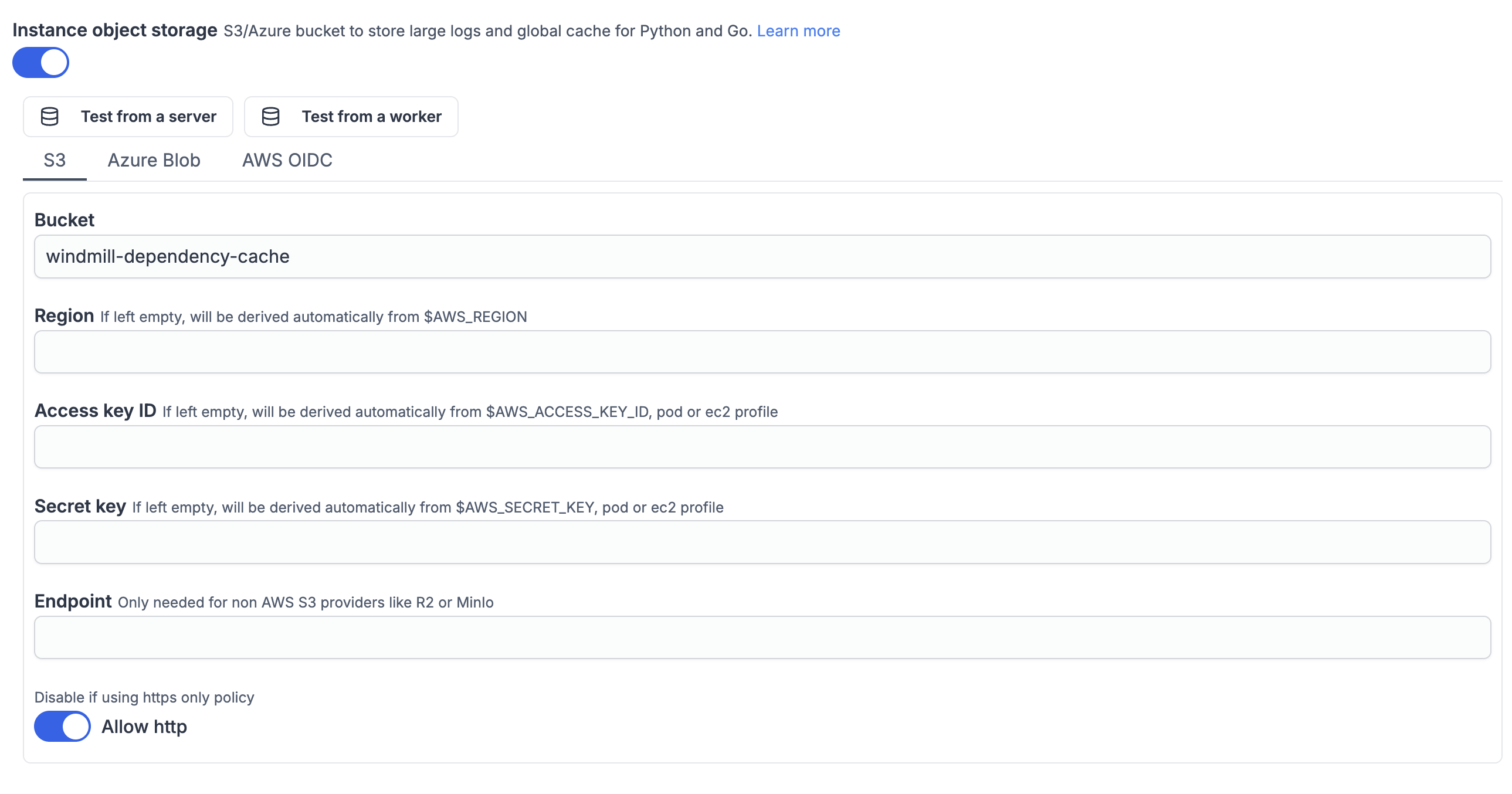

Instance object storage

Under Enterprise Edition, instance object storage offers advanced features to enhance performance and scalability at the instance level. This integration is separate from the Workspace object storage and provides solutions for large-scale log management and distributed dependency caching.

S3/Azure Blob Instance Integration

Connect your Windmill instance to your S3 bucket or your Azure Blob storage to enable users to read and write from S3 without having to have access to the credentials.
