Drag-and-drop features are helpful in contemporary user interface design, enabling users to perform actions such as repositioning list items, manipulating objects in a design tool, uploading files, or organizing various elements. While HTML supports this capability through its Drag and Drop API, the API can be cumbersome and challenging to use. As a result, numerous libraries have been created to simplify the process, avoiding the need for direct interaction with the HTML Drag and Drop API.
This guide will cover a library known as React Draggable, exploring the usage of its draggable components.
Please note that this is a general tutorial that does not cover any aspect of the product hosting this article: Windmill. To see how Windmill offers an alternative to your React applications, refer to the last section.
Introduction to React Draggable
Several libraries are available for creating draggable components in React, including react-draggable.
React Draggable offers a straightforward and customizable approach to building components that handle their own draggable state. It encapsulates a React component within a <Draggable> wrapper. This allows customization of component behavior through specific props. For instance, the axis prop can restrict movement to just the horizontal or vertical plane, while the bounds prop can confine the draggable area within specified limits.
The react-draggable library is particularly beneficial for those looking to swiftly add draggable elements to their React applications without dealing with the complexities of the HTML Drag and Drop API. Although it may not offer the same level of flexibility as React DnD, its simplicity makes it ideal for less complex applications.
Tutorial - Creating a List of Cards with React Draggable
We will use a simple application that lists cards, which can be moved via drag-and-drop, along with a button to add new cards.

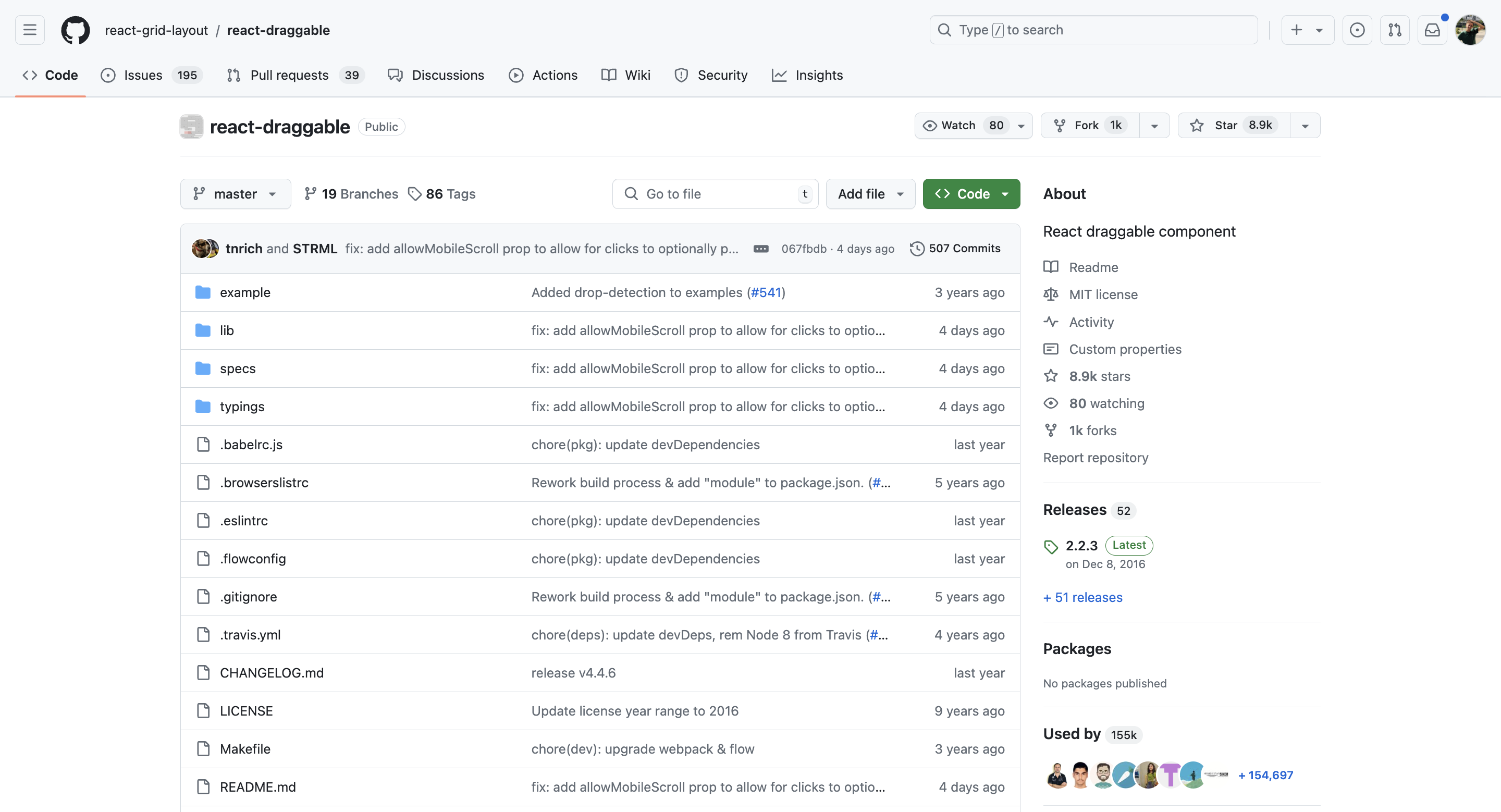

To get some help, you can visit this example repository on GitHub.
Setting Up the Application and Integrating React Draggable
Begin by setting up the application using Create React App. To initiate this, execute the following command in your terminal:
npx create-react-app draggable-tuto
cd draggable-tuto
This command generates a new React application named draggable-tuto and then navigates into the newly created directory.

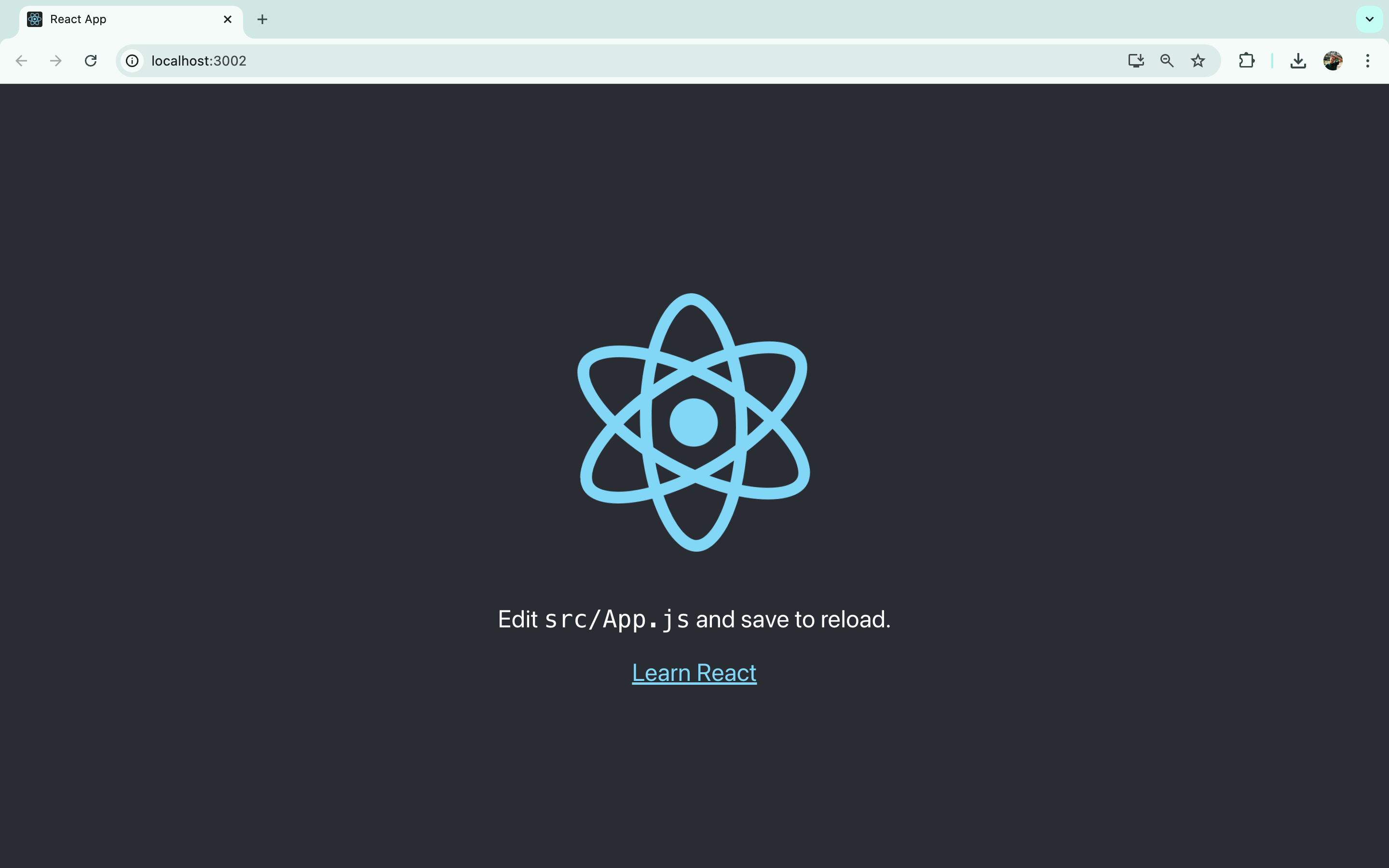

Following that, install the React Draggable library via npm and initiate the development server:
npm install react-draggable
npm start
Developing the Components and Structuring Them
Navigate to the src directory and create a new folder titled components. Within this folder, create two files: Card.jsx and List.jsx. The <Card> components will act as movable index cards featuring a customizable header and a text box for jotting down notes. The <List> component will function as the encompassing container for the <Card> components. Initially, insert basic placeholder code into each file.
For Card.jsx, input the following:
const Card = () => {
return (
<div className="card">
<div className="header">Header</div>
<div className="content">Content</div>
</div>
)
}
export default Card;
This snippet crafts a basic <Card> component with designated areas for a header and textual content. Initially, use placeholder text for these sections.
Then, for List.jsx, enter the following:
import Card from './Card';
const List = () => {
return (
<div className="list">
<Card />
</div>
)
}
export default List;

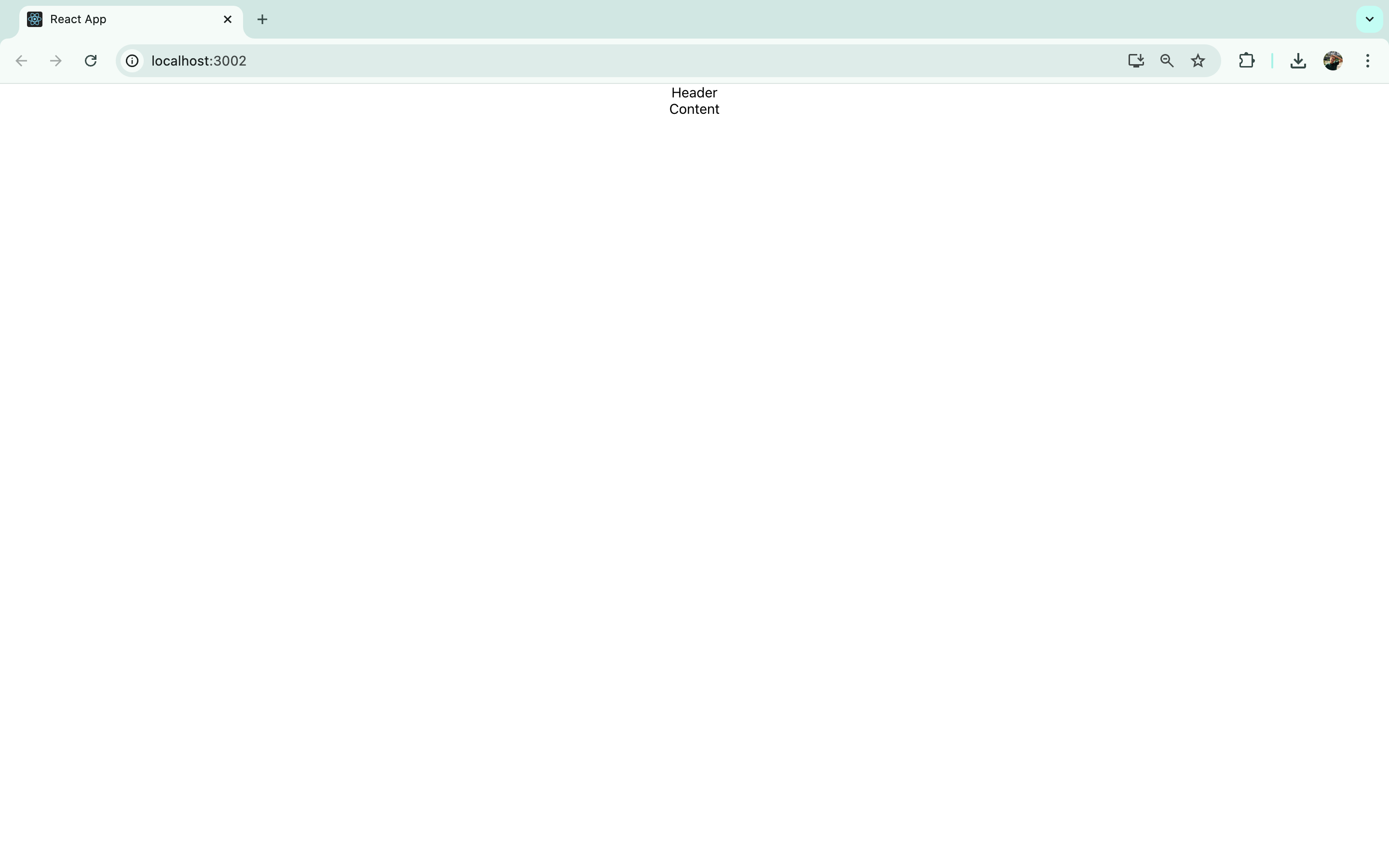

This code imports the newly created <Card> component and outputs a <div> containing a single <Card>. Additional cards will be incorporated later, but the immediate goal is to ensure all components are being correctly imported and displayed.
Lastly, within the App.js file, remove the code segment found within the outermost <div> and replace it with a single <List> component. Remember to import the <List> component from the components folder:
import List from './components/List';
import './App.css';
function App() {
return (
<div className="App">
<List />
</div>
);
}
export default App;
Styling
To enhance the visual clarity of the components, you can introduce some CSS styling. Clear out the existing contents of App.css, and apply styles to the list, card, header, and content classes as follows:
.App {
padding: 15px;
}
.list {
height: 100vh;
border: 3px solid #333;
}
.card {
margin: 10px;
border: 1px solid #e0e0e0;
border-radius: 10px;
width: 300px;
min-height: 150px;
box-shadow: 0 4px 6px rgba(0, 0, 0, 0.1);
background-color: #ffffff;
}
.card:hover {
transform: translateY(-5px);
box-shadow: 0 6px 10px rgba(0, 0, 0, 0.15);
}
.header {
border-bottom: 1px solid #e0e0e0;
border-radius: 10px 10px 0 0;
padding: 10px 15px;
background-color: #f0f8ff;
text-align: center;
font-weight: 600;
min-height: 30px;
box-shadow: 0 2px 4px rgba(0, 0, 0, 0.05);
cursor: pointer;
}
.content {
padding: 5px 10px;
}

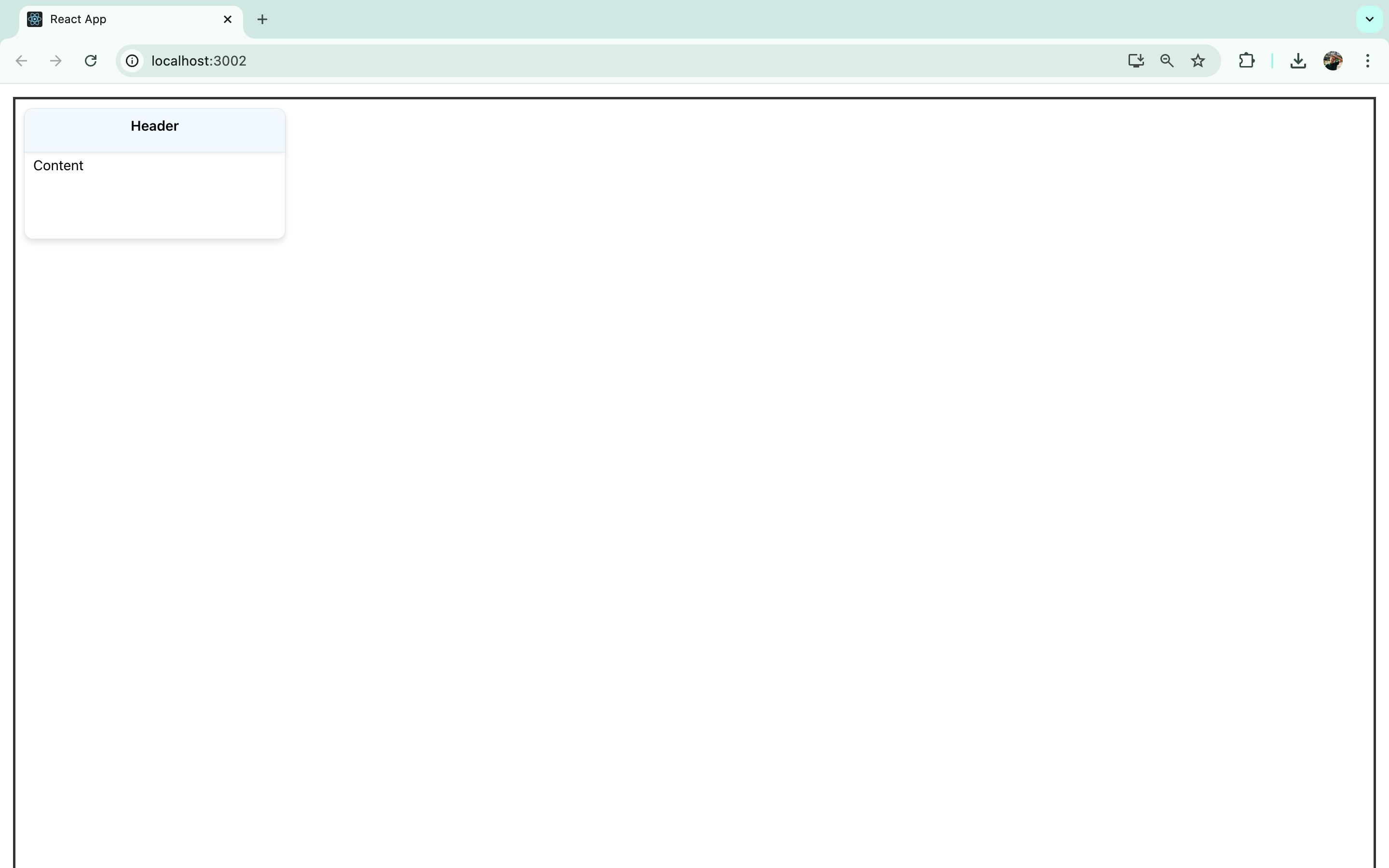

Applying these styles will visually transform the app to appear in the following manner:
Add cards to the list
We'll use the useState hook from React to establish a state variable that will hold an array of card data.
Begin by importing useState from React and setting up a state variable using array destructuring.
import { useState } from 'react';
Initially, we'll populate this state with placeholder data for card titles, but later on, we'll add the capability to include new cards with user-defined titles.
In your List.jsx, insert the following code before the return statement:
const [cards, setCards] = useState([{title: "Foo", id: 0}, {title: "Bar", id: 1}, {title: "Foobar", id: 3}]);
This code snippet defines cards as the state variable containing the card data and setCards as the function to update this state, initializing it with an array of mock card objects.
Replace the singular <Card> instance with the map function to convert each item in the cards array into <Card> components as shown below:
{cards.map((card) => <Card title={card.title} key={card.id} />)}
This approach generates a <Card> for each entry in the cards array, assigning the title and id from each object as props to the corresponding <Card>.

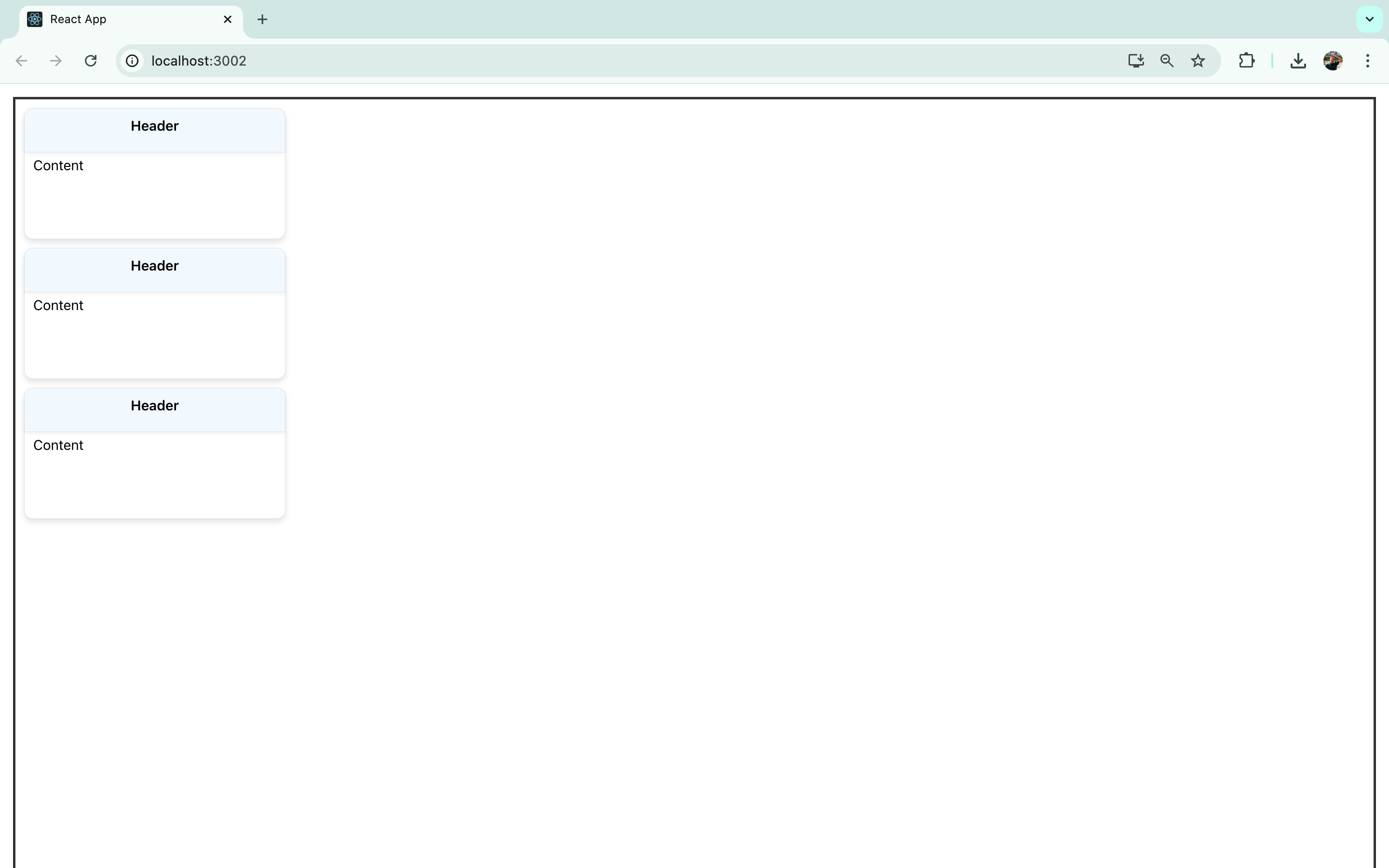

Upon viewing the updated app in the browser, it will look something like this:
Although the title of each card is passed as a prop to the <Card> components, it isn't yet displayed because the Card.jsx still uses static content.
To include the titles on the cards, modify Card.jsx as follows:
const Card = (props) => {
return (
<div className="card">
<div className="header">{props.title}</div>
<div className="content">Content</div>
</div>
)
}
export default Card;
Ensure to pass the props to the <Card> function.

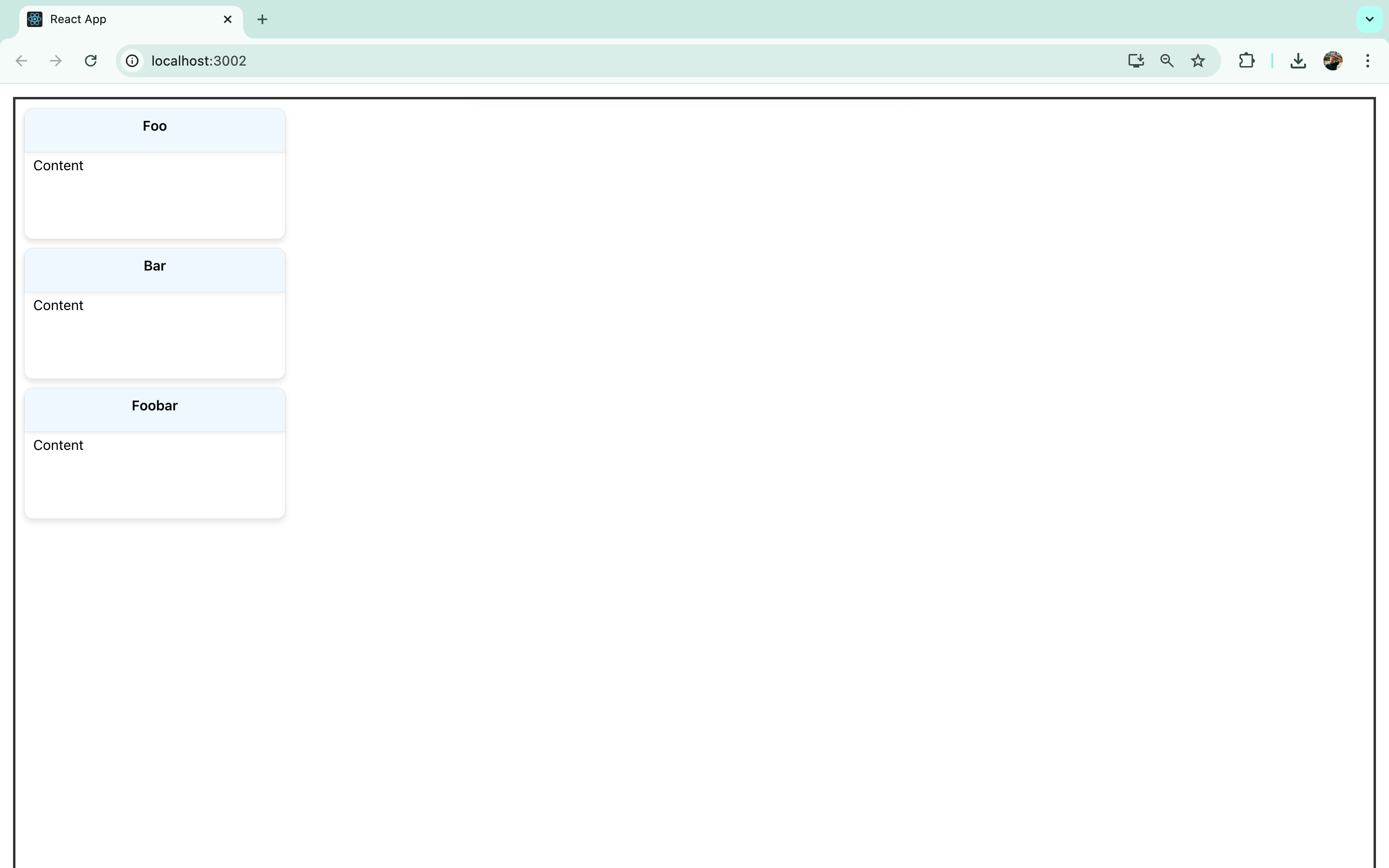

With this change, each card's header should now correctly display its title:
Before working on the content section of each <Card>, we will introduce draggability to the cards.
Make each card <Draggable>
Currently, the cards we've created are static and cannot be moved around. To enable drag-and-drop capabilities, we can easily integrate react-draggable.
Start by importing the <Draggable> component into Card.jsx as shown below:
import Draggable from 'react-draggable';
Next, encase the primary <div> of the <Card> component within a <Draggable> wrapper. After this adjustment, the <Card> component will appear as follows:
import Draggable from 'react-draggable';
const Card = (props) => {
return (
<Draggable>
<div className="card">
<div className="header">{props.title}</div>
<div className="content">Content</div>
</div>
</Draggable>
)
}
export default Card;
Upon revisiting the app, you'll notice that it is now possible to freely drag and drop the cards across the screen.
Resolving the findDOMNode warning

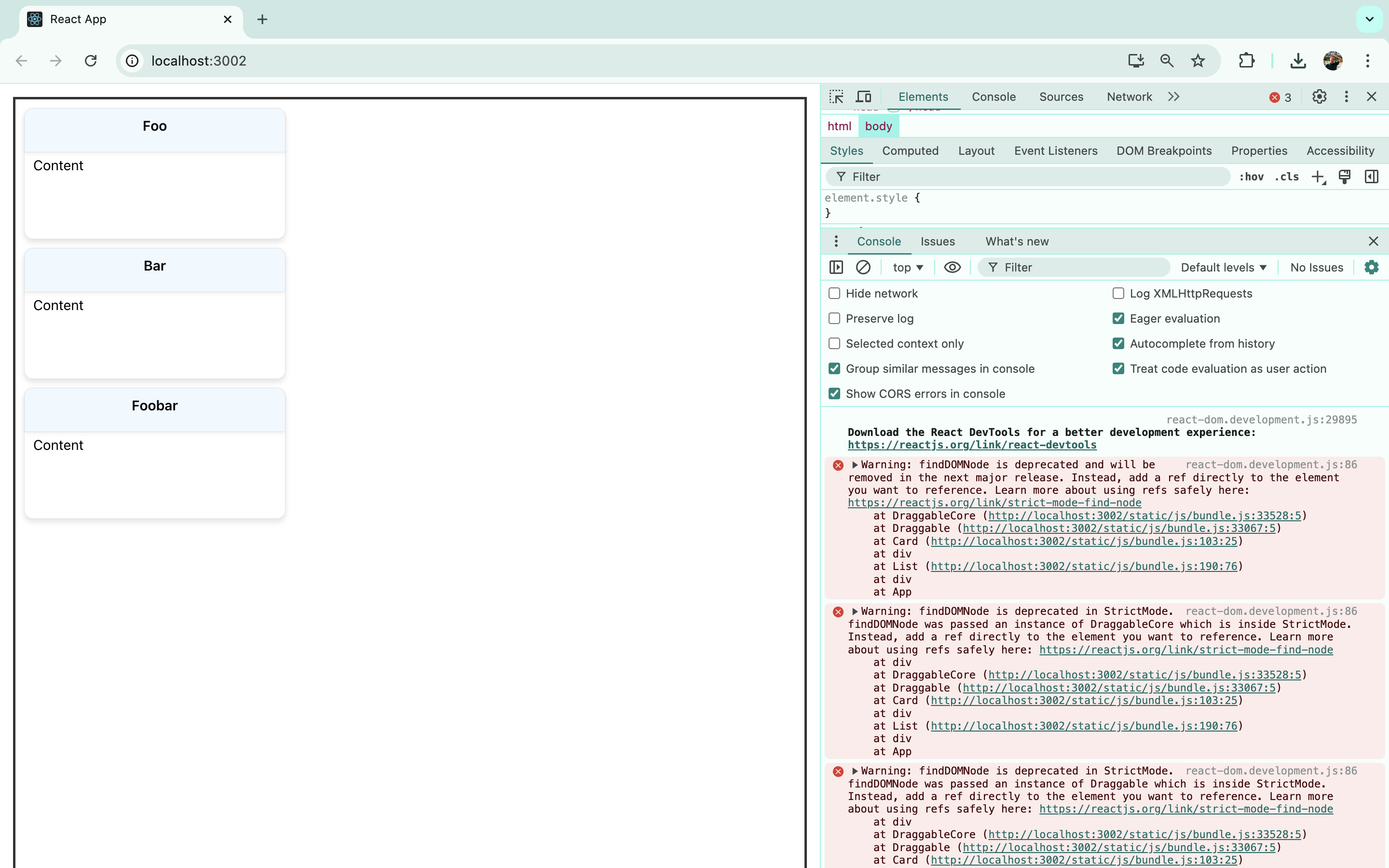

While the drag-and-drop functionality is now active, checking the console reveals an warning:
Warning: findDOMNode is deprecated in StrictMode. findDOMNode was passed an instance of Draggable which is inside StrictMode. Instead, add a ref directly to the element you want to reference.
This warning arises because React Draggable employs the deprecated findDOMNode method, and Create React App operates in strict mode by default. According to the error message, this issue can be resolved by attaching a ref directly to the targeted element.
To address this, modify Card.jsx in the following manner:
import Draggable from 'react-draggable';
import { useRef } from 'react';
const Card = (props) => {
const nodeRef = useRef(null);
return (
<Draggable nodeRef={nodeRef}>
<div ref={nodeRef} className="card">
<div className="header">{props.title}</div>
<div className="content">Content</div>
</div>
</Draggable>
)
}
export default Card;
After making these changes, refresh the page and revisit the console. The warning should have been eliminated.
Have the user add cards
Now, we can add some more interactivity to the app by creating the capability to add new cards. To do this, we'll create a form in the UI to add a new card and a state variable to store that new card. Then, we'll create a function that takes the contents of that variable and adds it to the existing list of cards.
First, add a simple form to List.jsx. The form contains a text box where the user can type a name for a new card, along with a button to add the new card:
<div className="add-card-form">
<input type="text" /><button>Add card</button>
</div>

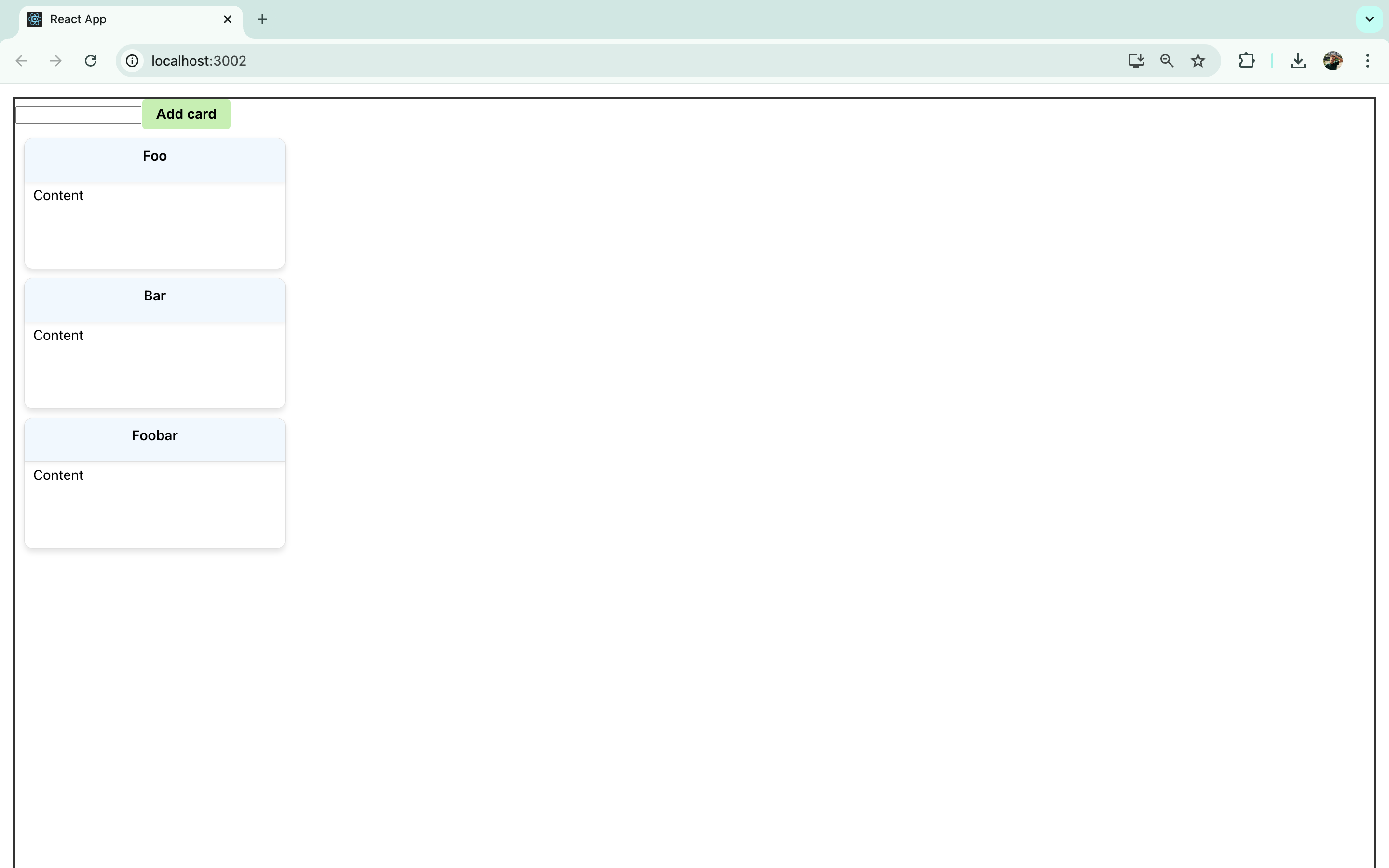

To improve the form's appearance, we can add some more styles in App.css:
button {
background-color: #bdf0ad;
padding: 8px 16px;
border: none;
border-radius: 4px;
cursor: pointer;
font-size: 1em;
font-weight: bold;
transition: background-color 0.2s, box-shadow 0.2s;
}
button:hover {
background-color: #b3e3a5;
}
.new-card-input {
margin: 8px 15px;
padding: 5px;
This form has no functionality yet, but we'll hook it up so that typing in the text box sets the new card variable, and pushing the button adds that new card to the list.
In the <List> component, create a new state variable to store the contents of the text field as the user types before they're added to the cards array as a new card:
const [newCard, setNewCard] = useState('');
As you can see in the above code, the initial value of newCard is just an empty string.
Next, in the <List> component, create a function that updates the cards array to include this new card. This function will be called when the "New Card" button is pressed. It will take the contents of the newCard variable to add to the end of the cards array:
const addCard = () => {
const tempArr = [...cards];
const card = {title: newCard, id: cards.length};
tempArr.push(card);
setCards(tempArr);
setNewCard('');
}
This function uses the spread operator to create a copy of the cards array and stores it in a temporary variable called tempArr. It then creates a new card object using the value of newCard (which will be a title chosen by the user) and an ID. Then, it pushes that card object to the temporary array, sets cards to that array, and clears the value of newCard.
Finally, we need to connect the form so that when the user types in the text field and presses the "Add Card" button, their card is added to the cards array. This change in the array will trigger a re-render and add their new card to the UI. To do this, make the following additions to the form in List.jsx:
<div className="add-card-form">
<input type="text" value={newCard} className="new-card-input" onChange={(e) => setNewCard(e.target.value)}/><button onClick={addCard}>Add card</button>
</div>
This code sets the value of the text field as the value of the newCard variable. As the user types, that value is changed using the setNewCard function. Then, when the button is clicked, the addCard function is called.
We can now add new cards and drag them around to reorder them.
Making the cards editable
We will now allow the text within the draggable cards to be editable. For this, conditional rendering will be used to toggle between a text box for editing and a <p> element that displays the entered text. We'll utilize the useState hook once more to manage the text input by the user.
Let's implement these enhancements in Card.jsx.
Start by importing useState from React. Assuming useRef has already been imported, your import statement will now include useState:
import { useState, useRef } from 'react';
Next, establish two state variables with useState:
const [text, setText] = useState('Write something here.');
const [isEditing, setIsEditing] = useState(false);
One variable will capture and update the text input by the user, while the other will hold a Boolean indicating if the user is currently editing the text.
To enable text editing, allow users to click on the <p> element within the card. After making changes, they can confirm their edits by clicking a "Save" button.
Make the following modifications in the <div> tagged with the content class to replace the placeholder text:
{isEditing ? <div><textarea className="text-input" value={text} onChange={(e) =>
setText(e.target.value)} onDoubleClick={() => setText('')} /><button onClick={() =>
setIsEditing(false)}>Save</button></div> : <p onClick={() => setIsEditing(true)}>{text}</p>}
This segment utilizes a ternary operator to check the state of isEditing. If true, it displays a <div> with a <textarea> where user inputs directly update the text variable. Double-clicking on the <textarea> clears its contents.
This <div> also includes a button that, when clicked, sets isEditing back to false, signifying the end of the editing process.
When isEditing is false, a <p> displays the stored text, and clicking this <p> reactivates the editing mode.
To further refine the interface, add styles to the <textarea> in App.css:
.text-input {
padding: 5px;
margin: 11px 0;
font-size: 1em;
width: 270px;
min-height: 80px;
resize: none;
}

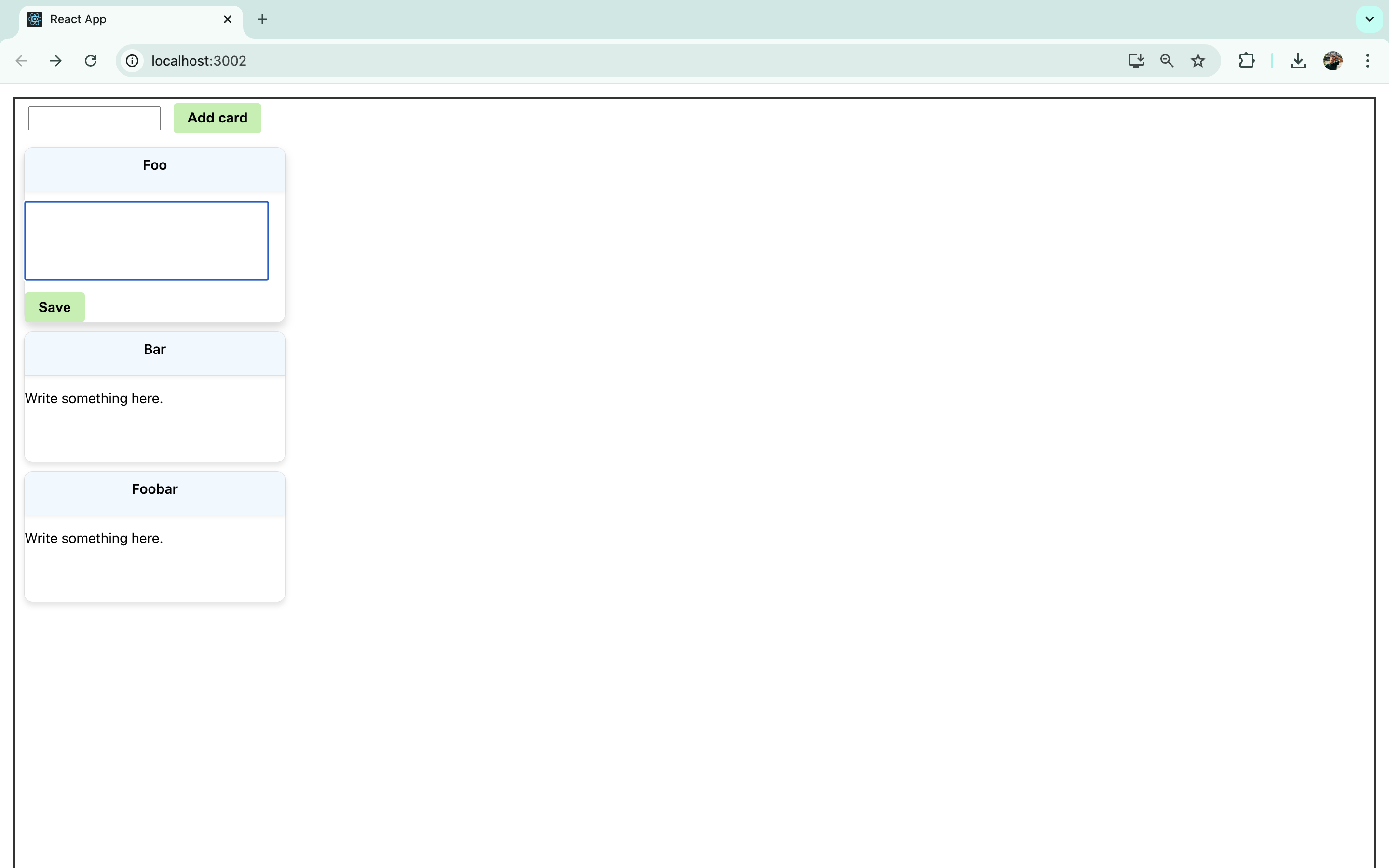

Here is how the editable card looks in action:
Adding a Drag Handle to the Cards
Given that interacting with a specific section of the card now activates the text editing mode, it would be practical to introduce a "handle" for dragging to avoid unintended text edits. This enhancement is straightforward with React Draggable.
Modify the <Draggable> component in the following manner:
<Draggable nodeRef={nodeRef} handle=".header">
This adjustment restricts the drag functionality to only the <div> labeled with the class name header:
Build custom UIs with Windmill
This completes our guide on using React Draggable components.
